#include <ISnapPrefsData.h>

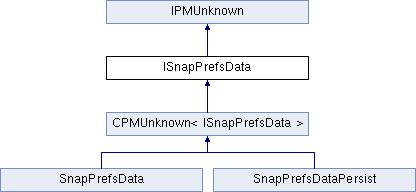

Inheritance diagram for ISnapPrefsData:

Public Types
enum	{ kDefaultIID = IID_ISNAPPREFSDATA }

Public Member Functions
virtual void	CopyPrefs (ISnapPrefsData *prefsToCopy)=0

virtual void	SetName (const WideString &name)=0

virtual const WideString &	GetName ()=0

virtual void	SetFormatClassID (const ClassID &formatClassID)=0

virtual const ClassID &	GetFormatClassID ()=0

virtual void	SetScale (const PMReal &scale)=0

virtual const PMReal &	GetScale ()=0

virtual void	SetResolution (const PMReal &resolution)=0

virtual const PMReal &	GetResolution ()=0

virtual void	SetMinimumResolution (const PMReal &minimumResolution)=0

virtual const PMReal &	GetMinimumResolution ()=0

virtual void	SetBleed (const PMReal &bleed)=0

virtual const PMReal &	GetBleed ()=0

virtual void	SetDrawArea (bool16 drawArea)=0

virtual const bool16 &	GetDrawArea ()=0

virtual void	SetFullResolutionGraphics (bool16 fullResolutionGraphics)=0

virtual const bool16 &	GetFullResolutionGraphics ()=0

virtual void	SetDrawGray (bool16 drawGray)=0

virtual const bool16 &	GetDrawGray ()=0

virtual void	SetDrawingFlags (int32 drawingFlags)=0

virtual const int32 &	GetDrawingFlags ()=0

virtual void	SetJPEGEncoding (const int32 encoding)=0

virtual const int32 &	GetJPEGEncoding ()=0

virtual void	SetJPEGQuality (const int32 quality)=0

virtual const int32 &	GetJPEGQuality ()=0

virtual void	SetTIFFPaletteType (const int32 paletteType)=0

virtual const int32 &	GetTIFFPaletteType ()=0

virtual void	SetGIFPaletteType (const int32 paletteType)=0

virtual const int32 &	GetGIFPaletteType ()=0

virtual void	SetTIFFTransparent (const bool16 transparent)=0

virtual const bool16 &	GetTIFFTransparent ()=0

virtual void	SetGIFTransparent (const bool16 transparent)=0

virtual const bool16 &	GetGIFTransparent ()=0

virtual void	SetGIFInterlaced (const bool16 interlaced)=0

virtual const bool16 &	GetGIFInterlaced ()=0

Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0

virtual void	AddRef () const =0

virtual void	Release () const =0

Detailed Description

From SDK sample; interface for SnapShot preferences data.

Member Function Documentation

virtual void ISnapPrefsData::CopyPrefs ( ISnapPrefsData * prefsToCopy )

pure virtual

Copy the given ISnapPrefsData to here. This is a shortcut if you only want to change one setting, use this to copy the settings then just change the one.

Parameters

prefsToCopy IN the ISnapPrefsData to copy

Implemented in SnapPrefsDataPersist, and SnapPrefsData.

virtual const PMReal& ISnapPrefsData::GetBleed ( )

pure virtual

Get the bleed.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual const bool16& ISnapPrefsData::GetDrawArea ( )

pure virtual

Returns kTrue if draw the clicked spread, returns kFalse if draw the selected items.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual const bool16& ISnapPrefsData::GetDrawGray ( )

pure virtual

Returns kTrue if image is draw in grayscale, otherwise returns kFalse.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual const int32& ISnapPrefsData::GetDrawingFlags ( )

pure virtual

Get the drawing flag.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual const ClassID& ISnapPrefsData::GetFormatClassID ( )

pure virtual

Get the image write format class ID.

Implemented in SnapPrefsDataPersist, and SnapPrefsData.

virtual const bool16& ISnapPrefsData::GetFullResolutionGraphics ( )

pure virtual

Returns kTrue if the image is drawn at full resolution, otherwise returns kFalse.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual const bool16& ISnapPrefsData::GetGIFInterlaced ( )

pure virtual

Get the interlace flag for GIF image.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual const int32& ISnapPrefsData::GetGIFPaletteType ( )

pure virtual

Get the palette type for GIF image.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual const bool16& ISnapPrefsData::GetGIFTransparent ( )

pure virtual

Get the transparency flag for GIF image.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual const int32& ISnapPrefsData::GetJPEGEncoding ( )

pure virtual

Get the JPEG encoding.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual const int32& ISnapPrefsData::GetJPEGQuality ( )

pure virtual

Get JPEG quality.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual const PMReal& ISnapPrefsData::GetMinimumResolution ( )

pure virtual

Get the minimum image resolution.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual const WideString& ISnapPrefsData::GetName ( )

pure virtual

Get the file name.

Implemented in SnapPrefsDataPersist, and SnapPrefsData.

virtual const PMReal& ISnapPrefsData::GetResolution ( )

pure virtual

Get the image resolution.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual const PMReal& ISnapPrefsData::GetScale ( )

pure virtual

Get the x and y scale factor.

Implemented in SnapPrefsDataPersist, and SnapPrefsData.

virtual const int32& ISnapPrefsData::GetTIFFPaletteType ( )

pure virtual

Get the palette type for TIFF image.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual const bool16& ISnapPrefsData::GetTIFFTransparent ( )

pure virtual

Get the transparency flag for TIFF image.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual void ISnapPrefsData::SetBleed ( const PMReal & bleed )

pure virtual

Set the bounds of the area to be drawn by the given amount of bleed.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual void ISnapPrefsData::SetDrawArea ( bool16 drawArea )

pure virtual

Set the draw area, the spread that is clicked or the selected items.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual void ISnapPrefsData::SetDrawGray ( bool16 drawGray )

pure virtual

Set to kTrue to draw grayscale, otherwise draw RGB.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual void ISnapPrefsData::SetDrawingFlags ( int32 drawingFlags )

pure virtual

Set the drawing flag.

Parameters

drawingFlags IN If this is set to kPrinting, then it suppresses the drawing of margins and guides. See IShape for the drawing flags.

See Also: IShape

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual void ISnapPrefsData::SetFormatClassID ( const ClassID & formatClassID )

pure virtual

Set the image write format class ID.

Implemented in SnapPrefsDataPersist, and SnapPrefsData.

virtual void ISnapPrefsData::SetFullResolutionGraphics ( bool16 fullResolutionGraphics )

pure virtual

Set to kTrue to force images and graphics to draw at full resolution, otherwise draw proxies.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual void ISnapPrefsData::SetGIFInterlaced ( const bool16 interlaced )

pure virtual

Set the interlace flag for GIF image. In general, it causes the reader to take longer to display the image if it is set.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual void ISnapPrefsData::SetGIFPaletteType ( const int32 paletteType )

pure virtual

Set the palette type for GIF image:

Parameters

paletteType Set to kTryExactThenAdaptivePalette (0), kMacPalette (1), kWebPalette (2) or kWinPalette (4). NOTE: kNoPalette is not an option for GIF images as they need a color palette.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual void ISnapPrefsData::SetGIFTransparent ( const bool16 transparent )

pure virtual

Set the transparency flag for GIF image.

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual void ISnapPrefsData::SetJPEGEncoding ( const int32 encoding )

pure virtual

Set the JPEG encoding

Parameters

encoding IN Set to baseline (0) or progressive (1).

Implemented in SnapPrefsData, and SnapPrefsDataPersist.

virtual void ISnapPrefsData::SetJPEGQuality ( const int32 quality )
