ITreeViewHierarchyAdapter Class Reference

#include <ITreeViewHierarchyAdapter.h>

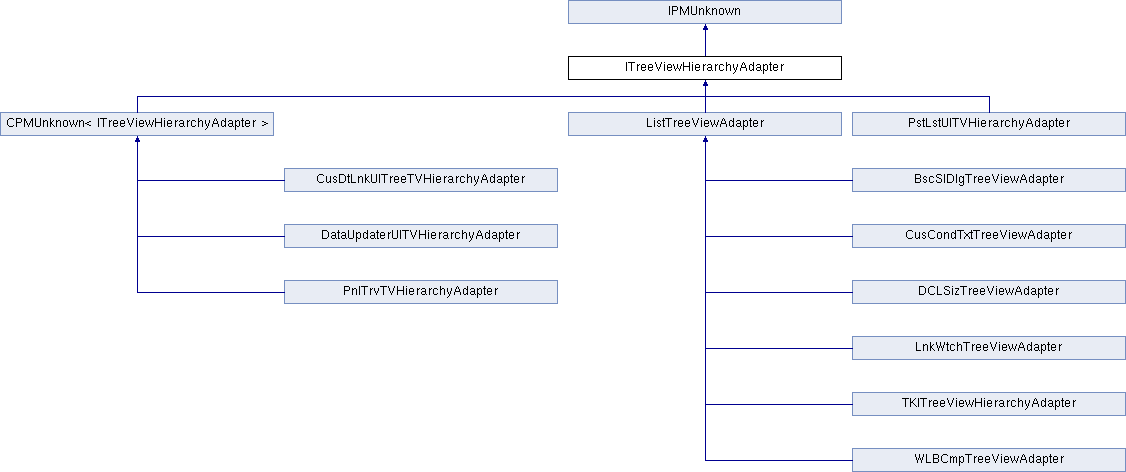

Inheritance diagram for ITreeViewHierarchyAdapter:

Public Types
enum	{ kDefaultIID = IID_ITREEVIEWHIERARCHYADAPTER }

Public Member Functions
virtual NodeID_rv	GetRootNode () const =0
virtual NodeID_rv	GetParentNode (const NodeID &node) const =0
virtual int32	GetNumChildren (const NodeID &node) const =0
virtual bool16	ShouldAddNthChild (const NodeID &node, const int32 &nth) const =0
virtual NodeID_rv	GetNthChild (const NodeID &node, const int32 &nth) const =0
virtual int32	GetChildIndex (const NodeID &parent, const NodeID &child) const =0
virtual NodeID_rv	GetGenericNodeID () const =0
Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0
virtual void	AddRef () const =0
virtual void	Release () const =0

Detailed Description

Interface that provides the means for navigating through a tree model. It is like the adapter pattern in that it provides a way for the TreeView widget to navigate a tree-model without requiring the tree-model to conform to any given interface.

Client code wishing to use a tree view widget should implement this interface.

To aid in debugging your ITreeViewHierarchyAdapter implementation, check the test menu item Test > UI > Enable TreeView Validation. This enables more debug only code to check that your hierarchy and NodeID implementations are correct.

Member Function Documentation

virtual int32 ITreeViewHierarchyAdapter::GetChildIndex ( const NodeID &  parent, const NodeID &  child  ) const

pure virtual

Accessor to determine the index of a given child node in its parent's collection of children.

Parameters

parent	specifies the parent node whose child we are querying about
child	specifies child of interest

Returns

index of given child in parent's collection, (-1) if not in collection

Implemented in CusDtLnkUITreeTVHierarchyAdapter, PnlTrvTVHierarchyAdapter, DataUpdaterUITVHierarchyAdapter, PstLstUITVHierarchyAdapter, CusCondTxtTreeViewAdapter, and ListTreeViewAdapter.

virtual NodeID_rv ITreeViewHierarchyAdapter::GetGenericNodeID ( ) const

pure virtual

Return a dummy node that can be used as a generic node anywhere in the tree.

Returns

reference to a generic node

Implemented in CusDtLnkUITreeTVHierarchyAdapter, PnlTrvTVHierarchyAdapter, DataUpdaterUITVHierarchyAdapter, PstLstUITVHierarchyAdapter, CusCondTxtTreeViewAdapter, and ListTreeViewAdapter.

virtual NodeID_rv ITreeViewHierarchyAdapter::GetNthChild ( const NodeID &  node, const int32 &  nth  ) const

pure virtual

Accessor for a child of a given node by index.

Parameters

node	specifies the parent node
nth	specifies index of child to choose

Returns

reference to the child at the given index

Implemented in CusDtLnkUITreeTVHierarchyAdapter, PnlTrvTVHierarchyAdapter, DataUpdaterUITVHierarchyAdapter, PstLstUITVHierarchyAdapter, CusCondTxtTreeViewAdapter, and ListTreeViewAdapter.

virtual int32 ITreeViewHierarchyAdapter::GetNumChildren ( const NodeID &  node ) const

pure virtual

Accessor for the number of children given a node that is in the tree-model. specifies the node of interest

Returns

number of children of given node

Implemented in CusDtLnkUITreeTVHierarchyAdapter, PnlTrvTVHierarchyAdapter, DataUpdaterUITVHierarchyAdapter, PstLstUITVHierarchyAdapter, CusCondTxtTreeViewAdapter, and ListTreeViewAdapter.

virtual NodeID_rv ITreeViewHierarchyAdapter::GetParentNode ( const NodeID &  node ) const

pure virtual

Accessor for the parent node of a given node. If the given node is the root node, this should return nil.

Implemented in CusDtLnkUITreeTVHierarchyAdapter, PnlTrvTVHierarchyAdapter, DataUpdaterUITVHierarchyAdapter, PstLstUITVHierarchyAdapter, CusCondTxtTreeViewAdapter, and ListTreeViewAdapter.

virtual NodeID_rv ITreeViewHierarchyAdapter::GetRootNode ( ) const

pure virtual

Accessor for the root node of the tree model. Should return an instance of a node that represents the root node, with data allowing it to be uniquely identified as such.

Returns

reference to root node

Implemented in CusDtLnkUITreeTVHierarchyAdapter, PnlTrvTVHierarchyAdapter, DataUpdaterUITVHierarchyAdapter, PstLstUITVHierarchyAdapter, CusCondTxtTreeViewAdapter, DCLSizTreeViewAdapter, WLBCmpTreeViewAdapter, ListTreeViewAdapter, and TKITreeViewHierarchyAdapter.

virtual bool16 ITreeViewHierarchyAdapter::ShouldAddNthChild ( const NodeID &  node, const int32 &  nth  ) const

pure virtual

When building subtrees, this is called so the client can choose to add this particular node or not. In most cases, returning true here is what you want.

Parameters

node	specifies the parent node
nth	specifies index of child to choose

Returns

if the node should be added to the tree or not

Implemented in CusDtLnkUITreeTVHierarchyAdapter, PnlTrvTVHierarchyAdapter, DataUpdaterUITVHierarchyAdapter, PstLstUITVHierarchyAdapter, and ListTreeViewAdapter.
