BscSlDlgTabDialogObserver Class Reference

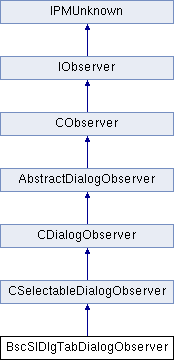

Inheritance diagram for BscSlDlgTabDialogObserver:

Public Member Functions
	BscSlDlgTabDialogObserver (IPMUnknown *boss)
virtual	~BscSlDlgTabDialogObserver ()
virtual void	Update (const ClassID &theChange, ISubject *theSubject, const PMIID &protocol, void *changedBy)
virtual void	AutoAttach ()
virtual void	AutoDetach ()
Public Member Functions inherited from CSelectableDialogObserver
	CSelectableDialogObserver (IPMUnknown *boss)
Public Member Functions inherited from CDialogObserver
	CDialogObserver (IPMUnknown *boss)
Public Member Functions inherited from AbstractDialogObserver
	AbstractDialogObserver (IPMUnknown *boss)
Public Member Functions inherited from CObserver
	CObserver (IPMUnknown *boss, PMIID interfaceID=IID_IOBSERVER)
IChangeManager *	GetChangeManager () const
virtual void	SetAttachIID (PMIID iid)
virtual PMIID	GetAttachIID () const
virtual void	SetEnabled (bool16 state)
virtual bool16	IsEnabled () const
virtual void	LazyUpdate (ISubject *theSubject, const PMIID &protocol, const LazyNotificationData *data)

Additional Inherited Members
Public Types inherited from IObserver
enum	{ kDefaultIID = IID_IOBSERVER }
Protected Member Functions inherited from CSelectableDialogObserver
virtual int32	GetSelectedPanelIndex ()
Protected Attributes inherited from CObserver
bool16	fDetachSubjectsOnDelete
PMIID	fAttachIID
const UIDRef	fThisRef
bool16	fEnabled

Detailed Description

This implementation subclasses CSelectableDialogObserver, not CObserver, to help provide the dialog switching mechanism. Note that each of the methods in this class first call the method in the parent class, CSelectableDialogObserver. (e.g. BscSlDlgTabDialogObserver::Update calls CSelectableDialogObserver::Update)

In addition, this implementation allows dynamic processing of the dialog's info button.

For the tabs to switch correctly, it is necessary to listen to kSelectedTabChangedMessage and react accordingly. It is illustrated in the Update() method, and it is actually from production code of TabBasicSelectableDialogObserver class, since the header is private, we provide the implementation here for developer who might need it. The previous version of this sample used an icon observer to dynamically process widget's state change, but it is impractical for plug-in that has many widgets to have one observer for each widget, thus we provide this dialog observer.

Constructor & Destructor Documentation

Binds the C implementation class onto its ImplementationID making the C code callable by the application * BscSlDlgTabDialogObserver::BscSlDlgTabDialogObserver

(

IPMUnknown *

boss

)

Constructor.

Parameters

boss	interface ptr from boss object on which interface is aggregated.

virtual BscSlDlgTabDialogObserver::~BscSlDlgTabDialogObserver ( )

inlinevirtual

Destructor.

Member Function Documentation

void BscSlDlgTabDialogObserver::AutoAttach ( void  )

virtual

Called by the application to allow the observer to attach to the subjects to be observed. In this case the tab dialog's info button widget.

Reimplemented from CSelectableDialogObserver.

void BscSlDlgTabDialogObserver::AutoDetach ( void  )

virtual

Called by the application to allow the observer to detach from the subjects being observed.

Reimplemented from CSelectableDialogObserver.

void BscSlDlgTabDialogObserver::Update ( const ClassID &  theChange, ISubject *  theSubject, const PMIID &  protocol, void *  changedBy  )

virtual

Called by the host when the observed object changes. In this case: the tab dialog's info button is clicked.

Since this class inherits CSelectableDialogObserver, it only handles the default list box widget, which is not used in the tab style. for tab style, we need to handle the kSelectedTabChangedMessage

Parameters

theChange	specifies the class ID of the change to the subject. Frequently this is a command ID.
theSubject	points to the ISubject interface for the subject that has changed.
protocol	specifies the ID of the changed interface on the subject boss.
changedBy	points to additional data about the change. Often this pointer indicates the class ID of the command that has caused the change.

Reimplemented from CSelectableDialogObserver.
