ICommandFactory Class Reference

#include <ICommandFactory.h>

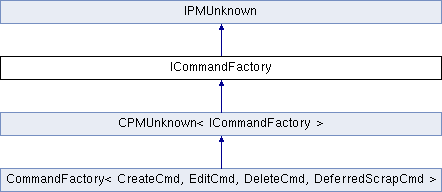

Inheritance diagram for ICommandFactory:

Public Types
enum	{ kDefaultIID = IID_ICOMMANDFACTORY }

Public Member Functions
virtual ICommand *	CreateCreateCommand () const =0
virtual ICommand *	CreateEditCommand () const =0
virtual ICommand *	CreateDeleteCommand () const =0
virtual ICommand *	CreateDeferredScrapCommand () const =0
Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0
virtual void	AddRef () const =0
virtual void	Release () const =0

Detailed Description

Creates commands to manipulate behaviors. There is a corresponding ICommandFactory implemention for each behavior implementation For example, ICommandFactory is an interface on kBehaviorDataBoss and kActionFactoryBoss (a service provider)

See Also

CommandFactory

Member Function Documentation

virtual ICommand* ICommandFactory::CreateCreateCommand ( ) const

pure virtual

Returns

A command that will create a particular behavior

Implemented in CommandFactory< CreateCmd, EditCmd, DeleteCmd, DeferredScrapCmd >.

virtual ICommand* ICommandFactory::CreateDeferredScrapCommand ( ) const

pure virtual

Returns

A command to be executed after the particular behavior is copied.

Such commands are called Fixup*BhvrCmd where * is the name of the behavior Examples are FixupShowHideFieldsBhvrCmd, FixupSoundBhvrCmd If you don't reference other UIDs, you can usually just return kNoOpCmdBoss for this.

Fixup commands (or DeferredScrap Commands) generally look at IXReferenceUID and edit the behavior so that the UIDs that are source refs in IXReferenceUID are changed to the corresponding destination refs

See Also

IXReferenceUID, FixupSoundBhvrCmd, FixupShowHideFieldsBhvrCmd

Implemented in CommandFactory< CreateCmd, EditCmd, DeleteCmd, DeferredScrapCmd >.

virtual ICommand* ICommandFactory::CreateDeleteCommand ( ) const

pure virtual

Returns

A command that will delete a particular behavior

Implemented in CommandFactory< CreateCmd, EditCmd, DeleteCmd, DeferredScrapCmd >.

virtual ICommand* ICommandFactory::CreateEditCommand ( ) const

pure virtual

Returns

A command that will edit a particular behavior

Implemented in CommandFactory< CreateCmd, EditCmd, DeleteCmd, DeferredScrapCmd >.
