#include <IHTTPLinkResourceServerAPIWrapper.h>

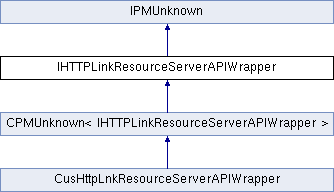

Inheritance diagram for IHTTPLinkResourceServerAPIWrapper:

Classes
struct	AssetMetadata

struct	AssetStatusWithMetadata

Public Types
enum	{ kDefaultIID = IID_IHTTPLINKRESOURCESERVERAPIWRAPPER }

typedef boost::shared_ptr < AssetStatusWithMetadata >	AssetStatusWithMetadataPtr

typedef boost::shared_ptr < AssetMetadata >	AssetMetadataPtr

typedef std::vector < AssetStatusWithMetadataPtr >	AssetStatusWithMetadataPtrVector

typedef std::vector< URI >	URIVector

typedef boost::shared_ptr < std::string >	AssetMetadataContentPtr

typedef boost::shared_ptr < AssetStatusWithMetadataPtrVector >	AssetStatusWithMetadataPtrVectorPtr

typedef std::map< std::string, AssetStatusWithMetadataPtr >	AssetPathToMetadataMap

typedef AssetPathToMetadataMap::iterator	AssetPathToMetadataMap_iter

typedef std::vector< WideString >	AssetPathVector

typedef boost::function< void(AssetStatusWithMetadataPtr assetStatusWithMetadataPtr)>	RequestAssetStatusCompletionFunction

typedef boost::function< void(AssetStatusWithMetadataPtrVectorPtr assetStatusWithMetadataPtrVectorPtr)>	RequestBatchAssetStatusCompletionFunction

Public Member Functions
virtual AssetStatusWithMetadataPtr	RequestAssetStatusWithMetadata (IHTTPLinkResourceConnection *connection, const URI &assetURI)=0

virtual bool16	AsyncRequestAssetStatusWithMetadata (IHTTPLinkResourceConnection *connection, const URI &assetURI, RequestAssetStatusCompletionFunction completionFunction)=0

virtual bool16	AsyncRequestBatchAssetStatusWithMetadata (IHTTPLinkResourceConnection *connection, const URIVector &assetURIVector, RequestBatchAssetStatusCompletionFunction completionFunction)=0

virtual bool16	GenerateSessionToken (IHTTPLinkResourceConnection *connection, std::string &token)=0

virtual bool16	GetConfiguredBatchLimits (IHTTPLinkResourceConnection *connection, int32 &batchLimit, long &maxTimeinMs, long &minTimeinMs)=0

virtual bool16	IsServerAccessible (IHTTPLinkResourceConnection *connection, bool16 &serverAccessible)=0

virtual bool16	FetchAssetPathAndRequestHeadersForDownload (IHTTPLinkResourceConnection *connection, const URI &inURI, URI &assetURI, HTTPLinkSubsystemTypes::Headers &headers) const =0

virtual URI	GetAssetURI (const URI &inAssetURI, ILinkResourceRenditionData::ResourceRenditionType type=ILinkResourceRenditionData::kOriginal) const =0

virtual bool16	IsBatchUpdateSupported (const URI &uri) const =0

virtual ILinkResourceRenditionData::ResourceRenditionType	GetURIRenditionType (const URI &inURI) const =0

virtual AssetMetadataContentPtr	RequestAssetTextFragmentContent (IHTTPLinkResourceConnection *connection, const URI &inURI, ErrorCode err=kCantPlaceTextFragmentLinkError)=0

virtual bool16	GetHTTPBatchRequestObjectType (const URI &uri, HTTPLinkSubsystemTypes::BatchRequestObjectType &objType) const =0

virtual bool16	AdjustURI (const URI &inUri, URI &outUri)=0

Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0

virtual void	AddRef () const =0

virtual void	Release () const =0

Detailed Description

IHTTPLinkResourceServerAPIWrapper deals with high level server API/functionalities . Some of its reposibilities include fetching metadata, checking server connection , generation of session token etc. Look through functions for details functionalities. If custom state batch updater is used then return true from IsBatchUpdateSupported(refer IHTTPLinkResourceStateBatchUpdater.h for more details).

To subclass create a boss based on kHTTPAssetLinkResourceServerHelperBoss with the implementation of this interface. And return this connection instance from the IHTTPLinkSubsystemObjectFactory. It is mandatory to implement this interface for creating new plugin to handle particular scheme.

Member Function Documentation

virtual bool16 IHTTPLinkResourceServerAPIWrapper::AsyncRequestAssetStatusWithMetadata	(	IHTTPLinkResourceConnection *	connection,
		const URI &	assetURI,
		RequestAssetStatusCompletionFunction	completionFunction
	)

pure virtual

Async mode request for the status of metadata asset for given asset URI.

Parameters

connection	[IN] HTTP Link Resource connection
assetURI	[IN] asset URI for status check
completionFunction	[IN] Asset Status Completion function

Returns: kTrue on success else kFalse.

Implemented in CusHttpLnkResourceServerAPIWrapper.

virtual bool16 IHTTPLinkResourceServerAPIWrapper::AsyncRequestBatchAssetStatusWithMetadata	(	IHTTPLinkResourceConnection *	connection,
		const URIVector &	assetURIVector,
		RequestBatchAssetStatusCompletionFunction	completionFunction
	)

pure virtual

Async mode for batch request for the status of metadata for passed vector of asset URIs.

Parameters

connection	[IN] HTTP Link Resource connection
assetURIVector	[IN] vector of asset URIs for batch status check
completionFunction	[IN] Asset Status Completion Function

Returns: kTrue on success else kFalse.

Implemented in CusHttpLnkResourceServerAPIWrapper.

virtual ILinkResourceRenditionData::ResourceRenditionType IHTTPLinkResourceServerAPIWrapper::GetURIRenditionType ( const URI & inURI ) const

pure virtual

Returns the rendition type of passed URI

Returns: the rendition type (kFPO or kOriginal)

Implemented in CusHttpLnkResourceServerAPIWrapper.

virtual AssetStatusWithMetadataPtr IHTTPLinkResourceServerAPIWrapper::RequestAssetStatusWithMetadata	(	IHTTPLinkResourceConnection *	connection,
		const URI &	assetURI
	)

pure virtual

Request the status of the Metadata asset specified by the assetURI on copnnection. e.g missing, modified etc

Parameters

connection	[IN] HTTP Link Resource connection
assetURIVector	[IN] vector of asset URIs status check

Returns: status of the metadata of the asset

Implemented in CusHttpLnkResourceServerAPIWrapper.

virtual AssetMetadataContentPtr IHTTPLinkResourceServerAPIWrapper::RequestAssetTextFragmentContent	(	IHTTPLinkResourceConnection *	connection,
		const URI &	inURI,
		ErrorCode	err = `kCantPlaceTextFragmentLinkError`
	)

pure virtual

Experimental; For internal use only.

Fetches the metadata content for the metadata asset specified by the given input URI.

Parameters

connection	[IN] HTTP Link Resource connection
inURI	[IN] input URI for text fragment content
err	[IN] errorCode

Returns: pointer(handle) to Asset Metadata Content(Asset Text Fragment Link content)

Implemented in CusHttpLnkResourceServerAPIWrapper.
