IHTTPLinkSubsystemObjectFactory Class Reference

#include <IHTTPLinkSubsystemObjectFactory.h>

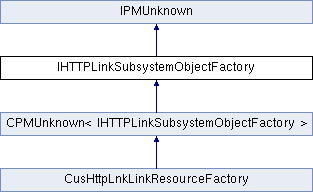

Inheritance diagram for IHTTPLinkSubsystemObjectFactory:

Public Types
enum	{ kDefaultIID = IID_IHTTPLINKSUBSYSTEMOBJECTFACTORY }

Public Member Functions
virtual void	GetSchemes (K2Vector< WideString > &schemes) const =0
virtual ILinkResourceHandler *	QueryHandler (const URI &uri, IDataBase *db) const =0
virtual ILinkResourceStateUpdater *	QueryStateUpdater (const URI &uri, IDataBase *db) const =0
virtual IHTTPLinkResourceConnection *	QueryHTTPLinkResourceConnection (const URI &uri, IDataBase *db) const =0
virtual IHTTPLinkResourceServerAPIWrapper *	QueryHTTPLinkResourceServerAPIWrapper (const URI &uriScheme, IDataBase *db) const =0
Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0
virtual void	AddRef () const =0
virtual void	Release () const =0

Detailed Description

IHTTPLinkSubsystemObjectFactory is used to implement custom handling of http links through scheme system. For creating a plugin for handling of http links, first define a scheme. Then do following steps:

1. Include this interface on the http link resource connection provider boss that is registered with the service registry as a kHTTPLinkResourceConnectionProvider. Its GetSchemes should return list of schemes supported by plugin. It will be called when HTTPLinkManager is initialized and schemes will be registered. IHTTPLinkManager will be using query functions defined here for the uri which matches with the schemes provided in GetSchemes.
2. Implement IHTTPLinkResourceServerAPIWrapper(for details see IHTTPLinkResourceServerAPIWrapper.h). It is mandatory to implement this interface. It deals with high level API interaction with server.
3. Implement IHTTPLinkResourceConnection(for details see IHTTPLinkResourceConnection.h). It is mandatory to implement this interface. It deals with creating connection with server. It handles responsibilities like login credentials and passing session tokens.

Above mentioned interfaces are mandatory, but there are other interfaces also that can be overriden to extend the functionalities:

1. IHTTPLinkResourceStateBatchUpdater - If web-api supports batch state updates, this interface can be implemented to alter default implementation
2. IHTTPLinkResourceServerCache - This should be implemented if want to handle cache by yourself.
3. IHTTPAssetDownloadManager - Should be implemented if different handling http asset downloads.

See Also

IHTTPLinkResourceServerAPIWrapper

IHTTPLinkResourceConnection

IK2ServiceProvider

IHTTPLinkResourceServerCache

IHTTPLinkResourceStateBatchUpdater

Member Function Documentation

virtual void IHTTPLinkSubsystemObjectFactory::GetSchemes ( K2Vector< WideString > &  schemes ) const

pure virtual

Gets the URI scheme supported by the resource connection.

Parameters

schemes

[OUT] all the registered schemes

Implemented in CusHttpLnkLinkResourceFactory.

virtual ILinkResourceHandler* IHTTPLinkSubsystemObjectFactory::QueryHandler ( const URI &  uri, IDataBase *  db  ) const

pure virtual

Returns the link resource handler that will be used by a link resource object to act on an resource whose URI scheme matches one of the supported schemes. Caller assumes responsibility for releasing the returned object.

Parameters

uri	[IN] URI of the link resource the handler will be used for.
db	[IN] Database that contains the link resource.

Returns

HTTP Link resource handler. \

Implemented in CusHttpLnkLinkResourceFactory.

virtual IHTTPLinkResourceConnection* IHTTPLinkSubsystemObjectFactory::QueryHTTPLinkResourceConnection ( const URI &  uri, IDataBase *  db  ) const

pure virtual

Returns the http link resource connection that will be used by a http links subsystem to interact with the http resource connection whose URI scheme matches one of the supported scheme. Caller assumes responsibility for releasing the returned object.

Parameters

uri	[IN] URI of the link resource the handler will be used for.
db	[IN] Database that contains the link resource.

Returns

Http Link resource connection. \

Implemented in CusHttpLnkLinkResourceFactory.

virtual IHTTPLinkResourceServerAPIWrapper* IHTTPLinkSubsystemObjectFactory::QueryHTTPLinkResourceServerAPIWrapper ( const URI &  uriScheme, IDataBase *  db  ) const

pure virtual

Returns the http link resource server API wrapper that will be used by a http links subsystem to interact with the http resource server whose URI scheme matches one of the supported scheme. Caller assumes responsibility for releasing the returned object.

Parameters

uri	[IN] URI of the link resource the handler will be used for.
db	[IN] Database that contains the link resource.

Returns

Http Link resource server API Wrapper. \

Implemented in CusHttpLnkLinkResourceFactory.

virtual ILinkResourceStateUpdater* IHTTPLinkSubsystemObjectFactory::QueryStateUpdater ( const URI &  uri, IDataBase *  db  ) const

pure virtual

Returns the link resource state updater that will be used to obtain and update the state of a link resource whose URI scheme matches one of the supported schemes. Caller assumes responsibility for releasing the returned object.

Parameters

uri	[IN] URI of the link resource whose state will be updated.
db	[IN] Database that contains the link resource.

Returns

HTTP Link resource state updater. \

Implemented in CusHttpLnkLinkResourceFactory.
