#include <IHandleShape.h>

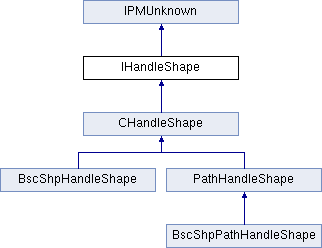

Inheritance diagram for IHandleShape:

Public Member Functions
virtual void	DrawHandleShape (GraphicsData gd, IConcreteSelection concreteSelection, int32 flags=0)=0

virtual void	DrawControlPointPath (GraphicsData *gd, int32 flags=0)=0

virtual bool16	HitTest (GraphicsData gd, const PMRect &r, PointSelector handleIndex, bool16 bDragging=kFalse)=0

virtual bool16	HitTestControlPointPath (GraphicsData *gd, const PMRect &r)=0

virtual void	GetControlPointPathOutlineInfo (IOutlineInfo *iOutlineInfo)=0

virtual PMRect	GetPaintedHandleBounds (const PMMatrix &pbtoview)=0

virtual void	Inval (GraphicsData *gd, ClassID reasonForInval=0, int32 flags=0)=0

virtual ITracker *	QueryTracker (IControlView *layView, const PBPMPoint &where, int32 selectionMode, const PointSelector &index)=0

virtual ITip *	QueryTip (const PointSelector *handleIndex)=0

Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0

virtual void	AddRef () const =0

virtual void	Release () const =0

Detailed Description

This interface is ONLY for drawing, inval and hit testing of selection handles. It is NOT a persistant interface and should have no duties other than those mentioned.

Member Function Documentation

virtual void IHandleShape::DrawControlPointPath	(	GraphicsData *	gd,
		int32	flags = `0`
	)

pure virtual

Draw the path based on item's control points.

Parameters

gd	the graphics context used for drawing.
flags	default as kNoFlags and serves as a drawing flag.

Returns: void.

Implemented in CHandleShape.

virtual void IHandleShape::DrawHandleShape	(	GraphicsData *	gd,
		IConcreteSelection *	concreteSelection,
		int32	flags = `0`
	)

pure virtual

Draw the selection handle of item.

Parameters

gd	the graphics context used for drawing.
concretSelection	the selection boss.
flags	default as kNoFlags and serves as a drawing flag.

Returns: void.

Implemented in CHandleShape.

virtual void IHandleShape::GetControlPointPathOutlineInfo ( IOutlineInfo * iOutlineInfo )

pure virtual

Get the path information of item's control points.

Parameters

iOutlineInfo the out parameter with the control point path.

Returns: void.

Implemented in CHandleShape, and PathHandleShape.

virtual PMRect IHandleShape::GetPaintedHandleBounds ( const PMMatrix & pbtoview )

pure virtual

Get the bounding box by computing it in pasteboard coords and then transforming it by pbtoview.

Parameters

pbtoview the matrix to transform the bounds based on pasteboard coordinates.

Returns: PMRect the bounds for painting(redrawing).

Implemented in BscShpPathHandleShape, and CHandleShape.

virtual bool16 IHandleShape::HitTest	(	GraphicsData *	gd,
		const PMRect &	r,
		PointSelector *	handleIndex,
		bool16	bDragging = `kFalse`
	)

pure virtual

Check if a particular handle of the item has been hit or not within the specified area.

Parameters

gd	the graphics context used for hit testing.
r	the area for checking hit test.
handleIndex	the index of selection handle.
bDragging	the flag indicating if hit test if during dragging or not.

Returns: bool16 kTrue if it hits, otherwise kFalse.

Implemented in CHandleShape.

virtual bool16 IHandleShape::HitTestControlPointPath	(	GraphicsData *	gd,
		const PMRect &	r
	)

pure virtual

Check if the control point path has been hit or not.

Parameters

gd	the graphics context used for hit testing.
r	the area for checking hit test.

Returns: bool16 kTrue if it hits, otherwise kFalse.

Implemented in CHandleShape.

virtual void IHandleShape::Inval	(	GraphicsData *	gd,
		ClassID	reasonForInval = `0`,
		int32	flags = `0`
	)

pure virtual

Invalidate the appropriate region of the object in the graphics context.

Parameters

gd	the graphics context used for invalidation.
reasonForInval	the ClassID defined for inval reason for handling different inval cases.
flags	default as kNoFlags and serves as a drawing flag.

Returns: void.

Implemented in CHandleShape.

virtual ITip* IHandleShape::QueryTip ( const PointSelector * handleIndex )

pure virtual

Query for any tip implemented on the shape. If there is any tip on the shape then the ITip interfacePtr will be returned else nil is returned in the default implementation

Parameters

handleIndex the index of the handle for the shape

Returns: ITip* the result tip

Implemented in CHandleShape.

virtual ITracker* IHandleShape::QueryTracker	(	IControlView *	layView,
		const PBPMPoint &	where,
		int32	selectionMode,
		const PointSelector &	index
	)

pure virtual

Query the tracker based on the given mouse position, hit test mode and selection handle index.

Parameters

layView	the active layout view where mouse is on.
where	the mouse position based on pasteboard coordinate.
selectionMode	the hit test flags.
index	specifies the index of selection handle.

Returns: ITracker* the result tracker and caller should deference it.

Implemented in CHandleShape, and PathHandleShape.
