IControlView Class Reference

#include <IControlView.h>

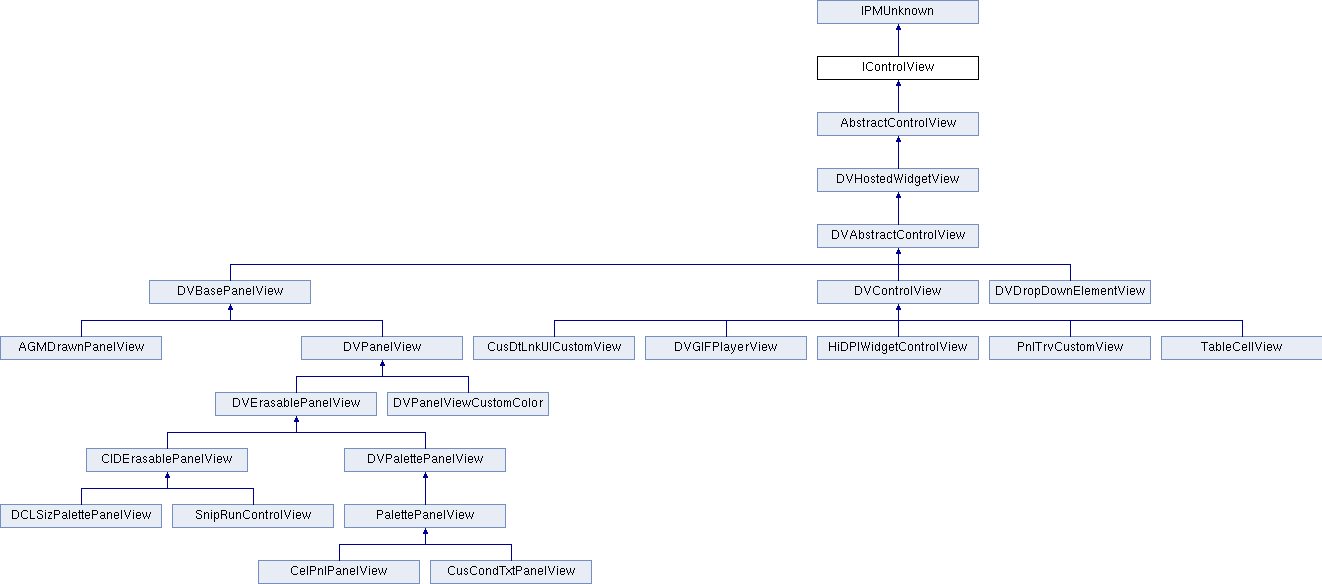

Inheritance diagram for IControlView:

Public Types
enum	{ kDefaultIID = IID_ICONTROLVIEW }

Public Member Functions
Initialization
virtual void	Init (const WidgetID &widgetId=kDefaultWidgetId, const PMRect &fFrame=kZeroRect, RsrcID rsrcID=0)=0
virtual void	DoPostCreate ()=0
Attributes
virtual RsrcID	GetRsrcID () const =0
virtual void	SetRsrcID (const RsrcID &id)=0
virtual PluginID	GetRsrcPluginID () const =0
virtual void	SetRsrcPluginID (const PluginID &id)=0
virtual WidgetID	GetWidgetID () const =0
virtual void	SetWidgetID (const WidgetID &id)=0
virtual void	SetClipToSelfEnabled (bool16 clipChildren) const =0
Geometry
virtual void	SetFrame (const PMRect &newFrame, bool16 invalidate=kTrue)=0
virtual const PMRect &	GetFrame () const =0
virtual const PMRect	GetLocalFrame () const =0
virtual void	Resize (const PMPoint &newDimensions, bool16 invalidate=kTrue)=0
virtual void	MoveTo (const PMPoint &where, bool16 invalidate=kTrue)=0
virtual void	SetFrameBinding (const FrameBinding &binding)=0
virtual FrameBinding	GetFrameBinding () const =0
virtual void	AdaptToParentsSize (const PMPoint &dimensions)=0
virtual void	AdaptToChildsGeometry (const PMPoint &delta, const FrameBinding &childsBinding, bool16 invalidate=kFalse)=0
virtual PMPoint	ConstrainDimensions (const PMPoint &dimensions) const =0
virtual SysRgn	GetDrawRegion ()=0
virtual bool16	DrawRegionEncompassesChildRegions () const =0
virtual SysRect	GetBBox () const =0
virtual PMMatrix *	GetContentToWindowTransform () const =0
virtual void	ContentToWindowTransform (PMPoint *point) const =0
virtual void	ContentToWindowTransform (PMRect *rect) const =0
virtual void	ContentToWindowTransform (PMPolygon4 *poly) const =0
virtual void	WindowToContentTransform (PMPoint *point) const =0
virtual void	WindowToContentTransform (PMRect *rect) const =0
virtual void	WindowToContentTransform (PMPolygon4 *poly) const =0
virtual PMMatrix	GetContentToWindowMatrix () const =0
virtual PMMatrix	GetWindowToContentMatrix () const =0
virtual PMRect	GetContentBounds_ () const =0
virtual void	InvalidateTransform ()=0
virtual void	DeleteDrawRegion ()=0
virtual int32	HitTest (const SysPoint &where)=0
virtual PMRect	GlobalToView (const PMRect &convertRect) const =0
virtual PMPoint	GlobalToView (const PMPoint &convertPoint) const =0
virtual PMRect	GlobalToWindow (const PMRect &convertRect) const =0
virtual PMPoint	GlobalToWindow (const PMPoint &convertPoint) const =0
virtual PMRect	ViewToGlobal (const PMRect &convertRect) const =0
virtual PMPoint	ViewToGlobal (const PMPoint &convertPoint) const =0
virtual PMRect	WindowToGlobal (const PMRect &convertRect) const =0
virtual PMPoint	WindowToGlobal (const PMPoint &convertPoint) const =0
Rendering
virtual void	Draw (IViewPort *viewPort, SysRgn updateRgn=nil)=0
virtual void	Invalidate (PMRect *invalidRect=nil)=0
virtual void	Validate (PMRect *invalidRect=nil)=0
virtual void	ForceRedraw (SysRgn invalidRgn=nil, bool16 forceRedraw=kTrue)=0
virtual void	Hilite (bool16 doHilite=kTrue)=0
virtual void	Unhilite ()=0
virtual bool16	IsHilited () const =0
virtual bool16	IsRolledOver () const =0
Window attributes
virtual void	WindowActivated ()=0
virtual void	WindowDeactivated ()=0
virtual void	WindowShown ()=0
virtual void	WindowHidden ()=0
virtual void	WindowChanged ()=0
virtual void	WindowClosed ()=0
Notification
virtual void	ParentPurged ()=0
Auto attaching-detaching
virtual void	DoAutoAttach ()=0
virtual void	DoAutoDetach ()=0
virtual void	SetRsrcID (const RsrcID &id, const bool isDarkIcon)=0
Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0
virtual void	AddRef () const =0
virtual void	Release () const =0

Show-Enable attributes
void	ShowView (bool16 doShow=kTrue)
void	HideView ()
virtual bool16	GetVisibleState () const =0
virtual bool16	IsVisible (bool16 requireVisibleWindow=kFalse) const =0
virtual void	ParentsVisibleStateChanged (bool16 visible)=0
virtual void	Enable (bool16 doEnable=kTrue, bool16 invalidate=kTrue)=0
virtual void	Disable (bool16 invalidate=kTrue)=0
virtual bool16	GetEnableState () const =0
virtual bool16	IsEnabled () const =0
virtual void	ParentsEnableStateChanged (bool16 visible, bool16 invalidate=kTrue)=0

Detailed Description

Interface responsible for determining the visual appearance of widgets. Handles drawing in various states. Also involved in hit testing and Auto attaching/detaching observers.

Member Function Documentation

virtual void IControlView::AdaptToChildsGeometry ( const PMPoint &  delta, const FrameBinding &  childsBinding, bool16  invalidate = kFalse  )

pure virtual

The widget should adapt it geometry based on one of its children geometry changing. Only called when child changes and if propagate is set.

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual void IControlView::AdaptToParentsSize ( const PMPoint &  dimensions )

pure virtual

The widget should adapt its geometry based on the parent's geometry. Called on changes in parent's size.

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual PMPoint IControlView::ConstrainDimensions ( const PMPoint &  dimensions ) const

pure virtual

Before resizing a widget, the client can ask if the size makes sense by calling this method. Return size constraints.

Implemented in AbstractControlView, CelPnlPanelView, DCLSizPalettePanelView, CusCondTxtPanelView, and SnipRunControlView.

virtual void IControlView::DeleteDrawRegion ( )

pure virtual

Deletes cached DrawRegion, causing it to be recalculated next time they're asked for.

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual void IControlView::DoAutoAttach ( )

pure virtual

Call to automatically attach observers. Shouldn't generally be called. Called on making view visible.

Implemented in AbstractControlView.

virtual void IControlView::DoAutoDetach ( )

pure virtual

Call to automatically detach observers. Shouldn't generally be called. Called on making view invisible.

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual void IControlView::DoPostCreate ( )

pure virtual

Called after the widget hierarchy is created. Can be overriden to do initialization that may need the hierarchy to perform.

Implemented in AGMDrawnPanelView, DVGIFPlayerView, AbstractControlView, CelPnlPanelView, DVBasePanelView, DVHostedWidgetView, and DVPanelView.

virtual void IControlView::Draw ( IViewPort *  viewPort, SysRgn  updateRgn = nil  )

pure virtual

Should be overridden to render the contents of the view.

Implemented in AbstractControlView, DVHostedWidgetView, CusDtLnkUICustomView, PnlTrvCustomView, TableCellView, AGMDrawnPanelView, DVAbstractControlView, DVDropDownElementView, and HiDPIWidgetControlView.

virtual bool16 IControlView::DrawRegionEncompassesChildRegions ( ) const

pure virtual

Returns kTrue if all potential children of this view should be contained within this views DrawRegion Returns kFalse if this is not the case.

By default, the draw region for a widget is an intersection of it's bounding box and it's parent's draw region, since typically, the parent widget clips the child widgets drawing. In some cases, a widget may not want to restrict it's children's drawing to it's bounds. For these cases, DrawRegionEncompassesChildRegions() should return kFalse.

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual void IControlView::ForceRedraw ( SysRgn  invalidRgn = nil, bool16  forceRedraw = kTrue  )

pure virtual

Redraws the invalid region directly. If 'forceRedraw' is true the redraw will happen immediately otherwise it just invals the region.

Parameters

invalidRgn	region of the window to draw. This region will NOT be disposed by ForceRedraw. If nil, then entire view (default)
forceRedraw	kTrue if you'd like to draw now (default), kFalse to just inval.

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual SysRect IControlView::GetBBox ( ) const

pure virtual

Return the bounding box, in window coordinates, of the view. Its preferable to use GetFrame.

Note: Listbox controls(kStdListBoxWidgetNewBoss) on the Windows platform behave differently. They will always return a bounding box in their own coordinates instead of the window coordinates. They will always return a bounding box with an origin of 0,0. Also, all children of listbox controls will return a bounding box relative to the listbox instead of the window.

Implemented in AbstractControlView.

virtual PMMatrix* IControlView::GetContentToWindowTransform ( ) const

pure virtual

Returns a transform for mapping geometry in content coordinate space to window cooridinate space.

Note: Listbox controls(kStdListBoxWidgetNewBoss) on the Windows platform behave differently. They do not include the transform from listbox to window All children of listbox controls will get a content to listbox transform.

Implemented in AbstractControlView.

virtual SysRgn IControlView::GetDrawRegion ( )

pure virtual

Return a region that represents the area that the view draws in. The graphics context clips drawing to this region. The returned region is in window coordinates.

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual bool16 IControlView::GetEnableState ( ) const

pure virtual

Return true if this view's enabled flag is set.

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual const PMRect& IControlView::GetFrame ( ) const

pure virtual

Get the frame of the widget within the parent's co-ordinate system.

Returns

reference to the frame enclosing the widget

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual FrameBinding IControlView::GetFrameBinding ( ) const

pure virtual

Get the frame binding. Each side of a widget's frame can be bound to the same side of its parent frame.

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual const PMRect IControlView::GetLocalFrame ( ) const

pure virtual

Get the frame of the widget within the widget's inner co-ordinate system.

Returns

PMRect contraining the frame enclosing the widget

Implemented in DVHostedWidgetView.

virtual RsrcID IControlView::GetRsrcID ( ) const

pure virtual

Get the resource ID for the widget.

Implemented in AbstractControlView.

virtual PluginID IControlView::GetRsrcPluginID ( ) const

pure virtual

Get the resources plugin id for the widget.

Implemented in AbstractControlView.

virtual bool16 IControlView::GetVisibleState ( ) const

pure virtual

Return true if this view's visible flag is set.

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual WidgetID IControlView::GetWidgetID ( ) const

pure virtual

Get the widget ID. The widget ID is used to uniquely identify a particular child widget within a panel.

Returns

ID for this widget

Implemented in AbstractControlView.

virtual PMRect IControlView::GlobalToView ( const PMRect &  convertRect ) const

pure virtual

Converts the specified rectangle/point from global (screen) coordinates to local coordinates.

Implemented in DVHostedWidgetView.

virtual void IControlView::Hilite ( bool16  doHilite = kTrue )

pure virtual

Set hiliting on or off.

Parameters

doHilite

can be set to kFalse to turn hilite off.

Implemented in AbstractControlView, DVHostedWidgetView, and DVBasePanelView.

virtual int32 IControlView::HitTest ( const SysPoint &  where )

pure virtual

Returns true if the point 'where' is within the bounds of the view. Note this method really returns a boolean. Not sure why the return type is an int32.

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual void IControlView::Init ( const WidgetID &  widgetId = kDefaultWidgetId, const PMRect &  fFrame = kZeroRect, RsrcID  rsrcID = 0  )

pure virtual

Initialize the control view.

Parameters

widgetId	specifies WidgetID to associate with this widget
fFrame	bounding box for the control
rsrcID	identifies resource to associate with this widget

Implemented in DVHostedWidgetView, CusDtLnkUICustomView, PnlTrvCustomView, and AbstractControlView.

virtual void IControlView::Invalidate ( PMRect *  invalidRect = nil )

pure virtual

Invalidate a portion of the control view.

Parameters

invalidRect

should be in content coordinates(i.e. GetFrame()). nil invalidates the whole control view.

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual void IControlView::InvalidateTransform ( )

pure virtual

Invalidates transforms, causing them to be recalculated next time they're asked for.

Implemented in AbstractControlView, and DVBasePanelView.

virtual bool16 IControlView::IsEnabled ( ) const

pure virtual

Return true if this view is enabled. A view is enabled if its enable flag is set and all of its ancestors are enabled.

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual bool16 IControlView::IsHilited ( ) const

pure virtual

Inspect the current hilite state.

Parameters

return

the current hilite state

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual bool16 IControlView::IsRolledOver ( ) const

pure virtual

Returns true if mouse is in a rollover state, requires rolloverboss

Parameters

return

the current hilite state

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual bool16 IControlView::IsVisible ( bool16  requireVisibleWindow = kFalse ) const

pure virtual

Return true if this view is visible. A view is visible if its visible flag is set and all of its ancestors are visible.

Parameters

requireVisibleWindow

specifies what to do if this widget and all it's parent widgets are visible, but it's not in a visible window.

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual void IControlView::MoveTo ( const PMPoint &  where, bool16  invalidate = kTrue  )

pure virtual

Move the widget to a specific position within the parent's coordinate system.

Parameters

where	new top-left location for widget frame in parent's co-ordinate system
invalidate	if set to kTrue, indicates that the widget should be marked for redraw

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual void IControlView::ParentPurged ( )

pure virtual

Called when this widget's parent will be purged in the near future.

Implemented in AbstractControlView, and DVBasePanelView.

virtual void IControlView::ParentsEnableStateChanged ( bool16  visible, bool16  invalidate = kTrue  )

pure virtual

Called whenever the widget's parent's enable state changes.

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual void IControlView::Resize ( const PMPoint &  newDimensions, bool16  invalidate = kTrue  )

pure virtual

Resize the widget.

Implemented in AbstractControlView, CelPnlPanelView, DVHostedWidgetView, and SnipRunControlView.

virtual void IControlView::SetClipToSelfEnabled ( bool16  clipChildren ) const

pure virtual

This flag will instruct view to clip it's children drawing within it's view

Implemented in DVHostedWidgetView.

virtual void IControlView::SetFrame ( const PMRect &  newFrame, bool16  invalidate = kTrue  )

pure virtual

Set a frame for the widget within the parent's co-ordinate system.

Parameters

newFrame	specifies frame for the widget
invalidate	if set to kTrue, indicates that the widget should be marked for redraw

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual void IControlView::SetFrameBinding ( const FrameBinding &  binding )

pure virtual

Set the frame binding. Each side of a widget's frame can be bound to the same side of its parent frame. Whenever the parent widget is moved/resized, child widgets which have binding other than kBindNone will adapt to their parent's new size/position.

Binding choices are kBindNone, kBindLeft, kBindTop, kBindRight, kBindBottom, kBindAll. Bindings can be logically composed using the '|' operator.

Parameters

binding

specifies the new binding

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual void IControlView::SetRsrcID ( const RsrcID &  id )

pure virtual

Set the resource ID for the widget.

Parameters

id	resource ID to associate with this widget

Implemented in AbstractControlView.

virtual void IControlView::SetRsrcID ( const RsrcID &  id, const bool  isDarkIcon  )

pure virtual

This function should be used only for Icon Widgets. Sets the resource ID for the widget and the theme to use for the icon.

Parameters

id	resource ID to associate with this widget.
isDarkIcon	whether the icon should be dark or bright.

Implemented in AbstractControlView.

virtual void IControlView::SetRsrcPluginID ( const PluginID &  id )

pure virtual

Set the resources plugin id for the widget.

Implemented in AbstractControlView.

virtual void IControlView::SetWidgetID ( const WidgetID &  id )

pure virtual

Set the widget ID.

Implemented in AbstractControlView.

virtual void IControlView::Unhilite ( )

pure virtual

Set hiliting off.

Implemented in AbstractControlView, DVHostedWidgetView, and DVBasePanelView.

virtual void IControlView::Validate ( PMRect *  invalidRect = nil )

pure virtual

Validate a portion of the control view.

Parameters

invalidRect

should be in window coordinates(i.e. GetBBox()). nil validates the whole control view.

Implemented in AbstractControlView, and DVHostedWidgetView.

virtual PMRect IControlView::ViewToGlobal ( const PMRect &  convertRect ) const

pure virtual

Converts the specified rectangle from local coordinates to global (screen) coordinates.

Implemented in DVHostedWidgetView.

virtual void IControlView::WindowActivated ( )

pure virtual

Called when a window containing this widget is made active or inactive. Do things like dim selections, hide scroll bars, etc.

Implemented in AbstractControlView, and DVBasePanelView.

virtual void IControlView::WindowChanged ( )

pure virtual

Called when window containing this widget changes. i.e. This widget is moved from one window to another.

Implemented in AbstractControlView, and DVBasePanelView.

virtual void IControlView::WindowClosed ( )

pure virtual

Called when window containing this widget closes.

Implemented in AbstractControlView, and DVBasePanelView.

virtual void IControlView::WindowDeactivated ( )

pure virtual

Called when a window containing this widget is made active or inactive. Do things like dim selections, hide scroll bars, etc.

Implemented in AbstractControlView, and DVBasePanelView.

virtual void IControlView::WindowHidden ( )

pure virtual

Called when a window containing this widget is hidden.

Implemented in AbstractControlView, and DVBasePanelView.

virtual void IControlView::WindowShown ( )

pure virtual

Called when a window containing this widget is shown.

Implemented in AbstractControlView, and DVBasePanelView.
