IXMLGenerator Class Reference

#include <IXMLGenerator.h>

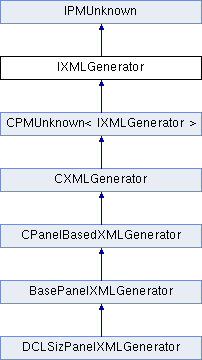

Inheritance diagram for IXMLGenerator:

Public Types
enum	{ kDefaultIID = IID_IXMLGENERATOR }

Public Member Functions
virtual void	GenerateBeginTag (IXMLOutStream *s)=0
virtual void	CollectAttributes (IXMLOutStream *s, IXMLOutStream::AttributeList *attrs)=0
virtual void	GenerateContent (IXMLOutStream *s, int32 beforeChildIndex=0)=0
virtual void	GenerateEndTag (IXMLOutStream *s)=0
Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0
virtual void	AddRef () const =0
virtual void	Release () const =0

Detailed Description

Interface representing cability to generate XML content. This is used by the export handler; see IXMLHandler.

Member Function Documentation

virtual void IXMLGenerator::CollectAttributes ( IXMLOutStream *  s, IXMLOutStream::AttributeList *  attrs  )

pure virtual

Collects the attributes that belong to a tag. The stream is necessary so that we can access cached path information for converted assets. Converted assets will have their href values replaced with the updated path information.

Parameters

s	stream where content written to
attrs	[OUT] parameter containing the attributes belonging to given boss object

Implemented in CXMLGenerator.

virtual void IXMLGenerator::GenerateBeginTag ( IXMLOutStream *  s )

pure virtual

Generates the beginning tag and its attributes, and then calls generate content

Parameters

s	stream where content written to

Implemented in BasePanelXMLGenerator, and CXMLGenerator.

virtual void IXMLGenerator::GenerateContent ( IXMLOutStream *  s, int32  beforeChildIndex = 0  )

pure virtual

Item generates a string of XML code that represents itself.

Parameters

s	[OUT] parameter, stream where content written to
beforeChildIndex	Generate the XML content that goes just before the child with index beforeChildIndex

For example:

 <element>before child 0<child0>0</child0>before child1<child1>

Implemented in BasePanelXMLGenerator, DCLSizPanelXMLGenerator, and CXMLGenerator.

virtual void IXMLGenerator::GenerateEndTag ( IXMLOutStream *  s )

pure virtual

Generates ending tag

Parameters

s	stream where content written to

Implemented in BasePanelXMLGenerator, and CXMLGenerator.
