BasePanelXMLGenerator Class Reference

#include <BasePanelXMLGenerator.h>

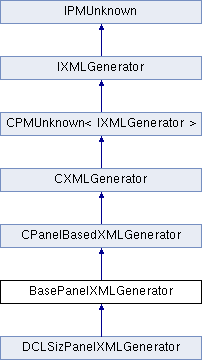

Inheritance diagram for BasePanelXMLGenerator:

Public Member Functions
	BasePanelXMLGenerator (IPMUnknown *boss)
virtual void	GenerateBeginTag (IXMLOutStream *s)
virtual void	GenerateEndTag (IXMLOutStream *s)
virtual void	PushPanelAttributes (IXMLOutStream::AttributeList &attrs, IControlView *panel)
virtual void	GenerateContent (IXMLOutStream *s, int32 beforeChildIndex=0)
Public Member Functions inherited from CPanelBasedXMLGenerator
	CPanelBasedXMLGenerator (IPMUnknown *boss)
virtual bool16	ShouldPanelBePersisted (IControlView *panel)
virtual void	GeneratePanelBeginTag (IXMLOutStream *s, IControlView *panel)
virtual void	GeneratePanelContents (IXMLOutStream *s, IControlView *panel)
virtual void	GeneratePanelEndTag (IXMLOutStream *s, IControlView *panel)
Public Member Functions inherited from CXMLGenerator
	CXMLGenerator (IPMUnknown *boss)
virtual void	CollectAttributes (IXMLOutStream *s, IXMLOutStream::AttributeList *attrs)
Public Member Functions inherited from CPMUnknown< IXMLGenerator >
IPMUnknown *	QueryInterface (PMIID interfaceID) const
void	AddRef () const
void	Release () const
void	PreDirty (ImplementationID prop=kInvalidImpl, bool16 allowModification=kTrue)
void	PreDirtyNoMessage (ImplementationID prop=kInvalidImpl, bool16 allowModification=kTrue)
	CPMUnknown (const CPMUnknown &)=delete
CPMUnknown &	operator= (const CPMUnknown &)=delete

Additional Inherited Members
Public Types inherited from IXMLGenerator
enum	{ kDefaultIID = IID_IXMLGENERATOR }
Protected Member Functions inherited from CPanelBasedXMLGenerator
virtual void	GenerateControlSet (IXMLOutStream *s, IKit *panelKit)
void	PushBool (IXMLOutStream::AttributeList &attrs, const PMString &name, bool16 theBool)
void	PushInt (IXMLOutStream::AttributeList &attrs, const PMString &name, int32 theInt)
void	PushString (IXMLOutStream::AttributeList &attrs, const PMString &name, const PMString &value)
Protected Attributes inherited from CPMUnknown< IXMLGenerator >
HelperInterface	fHelperInterface

Detailed Description

This class is the base class used by palette based panels that need to override their xml-based workspace representation. The default implementation provided here handles generating the begin and end tags (including default panel attributes), as well as a default content generator.

In order to change their XML content representation, clients can override GenerateContent. (there are 8 panels in CS3 that generate extra panel content - you can look inside a workspace file to see examples of this). In order to augment the XML attributes used in the panel's begin tag, clients can override PushPanelAttributes. (this is uncommon - the only use within InDesign is by the library panel to distinguish multiple copies of a panel by adding attributes that contain the name and path to the library being displayed).

See Also

IXMLGenerator, CPanelBasedXMLGenerator

Member Function Documentation

virtual void BasePanelXMLGenerator::GenerateBeginTag ( IXMLOutStream *  s )

virtual

Clients shouldn't need to override this

Reimplemented from CXMLGenerator.

virtual void BasePanelXMLGenerator::GenerateContent ( IXMLOutStream *  s, int32  beforeChildIndex = 0  )

virtual

Override this to generate any panel specific content (must call the inherited version).

Reimplemented from CXMLGenerator.

Reimplemented in DCLSizPanelXMLGenerator.

virtual void BasePanelXMLGenerator::GenerateEndTag ( IXMLOutStream *  s )

virtual

Clients shouldn't need to override this

Reimplemented from CXMLGenerator.

virtual void BasePanelXMLGenerator::PushPanelAttributes ( IXMLOutStream::AttributeList &  attrs, IControlView *  panel  )

virtual

Override this to add panel specific attributes (must call the inherited version). Called by GenerateBeginTag above.

Reimplemented from CPanelBasedXMLGenerator.
