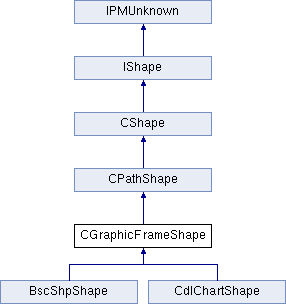

Inheritance diagram for CGraphicFrameShape:

Public Member Functions
	CGraphicFrameShape (IPMUnknown *boss)

Public Member Functions inherited from CPathShape
	CPathShape (IPMUnknown *boss)

Public Member Functions inherited from CShape
	CShape (IPMUnknown *boss)

virtual void	ProcessDrawShape (GraphicsData *gd, int32 flags)

virtual void	IterateShapeDrawOrder_ (const PMMatrix xform, ICallback callbackInfo, int32 flags)

virtual void	Inval (GraphicsData *gd, ClassID reasonForInval, int32 flags)

Public Member Functions inherited from IShape
void	IterateShapeDrawOrder (ICallback *callbackInfo, int32 flags=0)

Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0

virtual void	AddRef () const =0

virtual void	Release () const =0

Protected Member Functions
virtual void	DrawShape (GraphicsData *gd, int32 flags)

virtual void	DrawShape_Fill (GraphicsData *gd, int32 flags)

virtual void	DrawShape_Hierarchy (GraphicsData *gd, int32 flags)

virtual void	DrawShape_Stroke (GraphicsData *gd, int32 flags)

virtual bool16	IsGraphicFrame () const

virtual PMRect	GetPaintedBBox (const PMMatrix &theMatrix, const Transform::CoordinateSpace &coordinateSpace)

virtual PMRect	GetPrintedBBox (const PMMatrix &theMatrix, const Transform::CoordinateSpace &coordinateSpace, bool32 includeAdornments=kTrue)

Protected Attributes
IGraphicFrameData *	fFrameData

Protected Attributes inherited from CPathShape
IPathPageItem *	fPathPageItem

Protected Attributes inherited from CShape
IDataBase *	fDB

IPageItemCache *	fPageItemCache

IHierarchy *	fHierarchy

IGeometry *	fGeometry

IHandleShape *	fHandleShape

IHandleShape *	fPathHandleShape

IPageItemAdornmentList *	fAdornmentList

Additional Inherited Members
Public Types inherited from IShape
enum	{ kDefaultIID = IID_ISHAPE }

enum	{ kNoFlags = 0, kDrawingClippedOutImageData = 1, kUseXOR = 2, kDrawResizeDynamic = 4, kDrawRotateDynamic = 8, kDrawScaleDynamic = 16, kDrawMoveDynamic = 32, kDrawCreateDynamic = 64, kPatientUser = 128, kDynamicPause = 256, kPrinting = 512, kDoBroadcast = 1024, kDrawFrameEdge = 2048, kPreviewMode = 4096 }

enum	{ kSelect = 1, kDirectSelect = 2, kGroupSelect = 4, kOverrideMasterPageItemNoSelect = 8, kOverrideMasterPageItem = kOverrideMasterPageItemNoSelect + kSelect, kHitTest = 16, kSolidSelect = 32, kOnlyPath = 64, kHitTestLockedLayers = 128, kHitTextOnPath = 256, kOverrideThreadedMasterPageItems = 512 }

enum	{ kIsAMasterPageItem = 1, kSkipChildren = 2, kSkipHiddenLayers = 4, kSkipLockedLayers = 8, kSkipHiddenAndLockedLayers = kSkipHiddenLayers + kSkipLockedLayers, kSkipGuideLayers = 16, kSkipMasterPageItems = 32, kSkipNonGuideLayers = 64, kIncludeHiddenFormStates = 128, kSkipNonPrintingLayers = 256, kIteratePrinting = 512, kIncludeTOPPageItems = 1024, kSkipFormStates = 2048, kPDFExportMode = 4096 }

enum	{ kPathSelection = 1 }

Member Function Documentation

virtual void CGraphicFrameShape::DrawShape_Fill	(	GraphicsData *	gd,
		int32	flags
	)

protectedvirtual

DrawShape is broken out into fill, children, and stroke. This method implements the fill. It issues the appropriate event dispatches, adornments, etc., and does the fill based on the path already in gstate.

The gstate will be symmetric across this call, ie the gstate on exit should be the same as the gstate on entry.

Parameters

gd	IN The class that provides all the drawing context.
flags	IN Drawing flags (IShape::*)

virtual void CGraphicFrameShape::DrawShape_Hierarchy	(	GraphicsData *	gd,
		int32	flags
	)

protectedvirtual

DrawShape is broken out into fill, children, and stroke. This method implements the children. This takes into account any ghosting of content required and eventually calls DrawHierarchy.

The gstate will be symmetric across this call, ie the gstate on exit should be the same as the gstate on entry.

Parameters

gd	IN The class that provides all the drawing context.
flags	IN Drawing flags (IShape::*)

virtual void CGraphicFrameShape::DrawShape_Stroke	(	GraphicsData *	gd,
		int32	flags
	)

protectedvirtual

DrawShape is broken out into fill, children, and stroke. This method implements the fill. It issues the appropriate event dispatches, adornments, etc., and does the stroke based on the path already in gstate.

The gstate depth will be symmetric across the call but since this is the last operation in the chain it does not attempt to maintain gstate otherwise.

Parameters

gd	IN The class that provides all the drawing context.
flags	IN Drawing flags (IShape::*)

virtual PMRect CGraphicFrameShape::GetPaintedBBox	(	const PMMatrix &	theMatrix,
		const Transform::CoordinateSpace &	coordinateSpace
	)

protectedvirtual

Get the painted bounds. The bounds must include all painted area but does not need to be pixel perfect. Compute the bounds in pasteboard coords and then transform by theMatrix.

Parameters

theMatrix the matrix to transform the bounds based on pasteboard coordinates.

Returns: PMRect the bounds for painting(redrawing).

Reimplemented from CPathShape.

virtual PMRect CGraphicFrameShape::GetPrintedBBox	(	const PMMatrix &	theMatrix,
		const Transform::CoordinateSpace &	coordinateSpace,
		bool32	includeAdornments = `kTrue`
	)

protectedvirtual

Get the bounds around what will actually print. This includes the stroke bounds plus whatever adornments are set to print. Compute the bounds in pasteboard coords and then transform by theMatrix.

Parameters

theMatrix	the matrix to transform the bounds based on pasteboard coordinates.
includeAdornments	[IN] Whether or not printing adornments are included in the resulting bounding box

Returns: PMRect the bounds for printing.

Reimplemented from CShape.
