CShape Class Reference

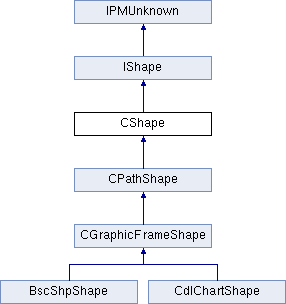

Inheritance diagram for CShape:

Public Member Functions
	CShape (IPMUnknown *boss)
virtual void	ProcessDrawShape (GraphicsData *gd, int32 flags)
virtual PMRect	GetPaintedBBox (const PMMatrix &theMatrix, const Transform::CoordinateSpace &coordinateSpace)
virtual PMRect	GetPrintedBBox (const PMMatrix &theMatrix, const Transform::CoordinateSpace &coordinateSpace, bool32 includeAdornments=kTrue)
virtual void	IterateShapeDrawOrder_ (const PMMatrix *xform, ICallback *callbackInfo, int32 flags)
virtual void	Inval (GraphicsData *gd, ClassID reasonForInval, int32 flags)
Public Member Functions inherited from IShape
void	IterateShapeDrawOrder (ICallback *callbackInfo, int32 flags=0)
Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0
virtual void	AddRef () const =0
virtual void	Release () const =0

Protected Member Functions
virtual void	DrawShape (GraphicsData *gd, int32 flags)
virtual void	DrawHierarchy (GraphicsData *gd, int32 flags)
virtual void	IterateDrawOrderHierarchy (const PMMatrix *xform, ICallback *callbackInfo, int32 flags)
virtual bool16	IsDynamic (int32 flags)
virtual bool16	IsPatientUser (int32 flags)
virtual bool16	IsPrinting (int32 flags)
virtual bool16	ShapeDisabled (GraphicsData *gd, int32 flags)
virtual void	DrawPageItemAdornments (GraphicsData *, int32, IAdornmentShape::AdornmentDrawOrder)
virtual void	UnionPageItemAdornmentPaintedBBox (PMRect &, const PMMatrix &innertoview)
virtual void	UnionPrintingPageItemAdornmentPaintedBBox (PMRect &, const PMMatrix &innertoview)
virtual void	InvalPageItemAdornments (IAdornmentShape::AdornmentDrawOrder, GraphicsData *gd, ClassID reasonForInval, int32 flags)
bool16	IsCacheValid () const

Protected Attributes
IDataBase *	fDB
IPageItemCache *	fPageItemCache
IHierarchy *	fHierarchy
IGeometry *	fGeometry
IHandleShape *	fHandleShape
IHandleShape *	fPathHandleShape
IPageItemAdornmentList *	fAdornmentList

Additional Inherited Members
Public Types inherited from IShape
enum	{ kDefaultIID = IID_ISHAPE }
enum	{   kNoFlags = 0, kDrawingClippedOutImageData = 1, kUseXOR = 2, kDrawResizeDynamic = 4,   kDrawRotateDynamic = 8, kDrawScaleDynamic = 16, kDrawMoveDynamic = 32, kDrawCreateDynamic = 64,   kPatientUser = 128, kDynamicPause = 256, kPrinting = 512, kDoBroadcast = 1024,   kDrawFrameEdge = 2048, kPreviewMode = 4096 }
enum	{   kSelect = 1, kDirectSelect = 2, kGroupSelect = 4, kOverrideMasterPageItemNoSelect = 8,   kOverrideMasterPageItem = kOverrideMasterPageItemNoSelect + kSelect, kHitTest = 16, kSolidSelect = 32, kOnlyPath = 64,   kHitTestLockedLayers = 128, kHitTextOnPath = 256, kOverrideThreadedMasterPageItems = 512 }
enum	{   kIsAMasterPageItem = 1, kSkipChildren = 2, kSkipHiddenLayers = 4, kSkipLockedLayers = 8,   kSkipHiddenAndLockedLayers = kSkipHiddenLayers + kSkipLockedLayers, kSkipGuideLayers = 16, kSkipMasterPageItems = 32, kSkipNonGuideLayers = 64,   kIncludeHiddenFormStates = 128, kSkipNonPrintingLayers = 256, kIteratePrinting = 512, kIncludeTOPPageItems = 1024,   kSkipFormStates = 2048, kPDFExportMode = 4096 }
enum	{ kPathSelection = 1 }

Member Function Documentation

virtual PMRect CShape::GetPaintedBBox ( const PMMatrix &  theMatrix, const Transform::CoordinateSpace &  coordinateSpace  )

virtual

Get the painted bounds. The bounds must include all painted area but does not need to be pixel perfect. Compute the bounds in pasteboard coords and then transform by theMatrix.

Parameters

theMatrix

the matrix to transform the bounds based on pasteboard coordinates.

Returns

PMRect the bounds for painting(redrawing).

Implements IShape.

Reimplemented in CGraphicFrameShape, and CPathShape.

virtual PMRect CShape::GetPrintedBBox ( const PMMatrix &  theMatrix, const Transform::CoordinateSpace &  coordinateSpace, bool32  includeAdornments = kTrue  )

virtual

Get the bounds around what will actually print. This includes the stroke bounds plus whatever adornments are set to print. Compute the bounds in pasteboard coords and then transform by theMatrix.

Parameters

theMatrix	the matrix to transform the bounds based on pasteboard coordinates.
includeAdornments	[IN] Whether or not printing adornments are included in the resulting bounding box

Returns

PMRect the bounds for printing.

Implements IShape.

Reimplemented in CGraphicFrameShape.

virtual void CShape::Inval ( GraphicsData *  gd, ClassID  reasonForInval, int32  flags  )

virtual

Invalidate the appropriate region of the object in the graphics context.

Parameters

gd	the graphics context used for invalidation.
reasonForInval	the ClassID defined for inval reason for handling different inval cases.
flags	default as kNoFlags and serves as a drawing flag.

Returns

void.

Implements IShape.

virtual void CShape::IterateShapeDrawOrder_ ( const PMMatrix *  xform, ICallback *  callbackInfo, int32  flags  )

virtual

Call callbackInfo->callback for each item in this shape's hierarchy.

Parameters

xform	the matrix to transform coordinates.
callbackInfo
flags	default as kNoFlags and serves as a drawing flag.

Returns

void.

Implements IShape.

virtual void CShape::ProcessDrawShape ( GraphicsData *  gd, int32  flags  )

virtual

Draw the shape of item. In general, don't call draw or HitTest directly. Use IDrawMgr instead.

Parameters

gd	the graphics context used for drawing.
flags	default as kNoFlags and serves as a drawing flag.

Returns

void.

Implements IShape.
