CdlChartShape Class Reference

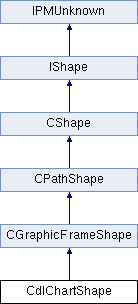

Inheritance diagram for CdlChartShape:

Public Member Functions
	CdlChartShape (IPMUnknown *boss)
virtual	~CdlChartShape ()
Public Member Functions inherited from CGraphicFrameShape
	CGraphicFrameShape (IPMUnknown *boss)
Public Member Functions inherited from CPathShape
	CPathShape (IPMUnknown *boss)
Public Member Functions inherited from CShape
	CShape (IPMUnknown *boss)
virtual void	ProcessDrawShape (GraphicsData *gd, int32 flags)
virtual void	IterateShapeDrawOrder_ (const PMMatrix *xform, ICallback *callbackInfo, int32 flags)
virtual void	Inval (GraphicsData *gd, ClassID reasonForInval, int32 flags)
Public Member Functions inherited from IShape
void	IterateShapeDrawOrder (ICallback *callbackInfo, int32 flags=0)
Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0
virtual void	AddRef () const =0
virtual void	Release () const =0

Protected Member Functions
virtual void	DrawShape (GraphicsData *gd, int32 flags)
Protected Member Functions inherited from CGraphicFrameShape
virtual void	DrawShape_Fill (GraphicsData *gd, int32 flags)
virtual void	DrawShape_Hierarchy (GraphicsData *gd, int32 flags)
virtual void	DrawShape_Stroke (GraphicsData *gd, int32 flags)
virtual bool16	IsGraphicFrame () const
virtual PMRect	GetPaintedBBox (const PMMatrix &theMatrix, const Transform::CoordinateSpace &coordinateSpace)
virtual PMRect	GetPrintedBBox (const PMMatrix &theMatrix, const Transform::CoordinateSpace &coordinateSpace, bool32 includeAdornments=kTrue)

Additional Inherited Members
Public Types inherited from IShape
enum	{ kDefaultIID = IID_ISHAPE }
enum	{   kNoFlags = 0, kDrawingClippedOutImageData = 1, kUseXOR = 2, kDrawResizeDynamic = 4,   kDrawRotateDynamic = 8, kDrawScaleDynamic = 16, kDrawMoveDynamic = 32, kDrawCreateDynamic = 64,   kPatientUser = 128, kDynamicPause = 256, kPrinting = 512, kDoBroadcast = 1024,   kDrawFrameEdge = 2048, kPreviewMode = 4096 }
enum	{   kSelect = 1, kDirectSelect = 2, kGroupSelect = 4, kOverrideMasterPageItemNoSelect = 8,   kOverrideMasterPageItem = kOverrideMasterPageItemNoSelect + kSelect, kHitTest = 16, kSolidSelect = 32, kOnlyPath = 64,   kHitTestLockedLayers = 128, kHitTextOnPath = 256, kOverrideThreadedMasterPageItems = 512 }
enum	{   kIsAMasterPageItem = 1, kSkipChildren = 2, kSkipHiddenLayers = 4, kSkipLockedLayers = 8,   kSkipHiddenAndLockedLayers = kSkipHiddenLayers + kSkipLockedLayers, kSkipGuideLayers = 16, kSkipMasterPageItems = 32, kSkipNonGuideLayers = 64,   kIncludeHiddenFormStates = 128, kSkipNonPrintingLayers = 256, kIteratePrinting = 512, kIncludeTOPPageItems = 1024,   kSkipFormStates = 2048, kPDFExportMode = 4096 }
enum	{ kPathSelection = 1 }
Protected Attributes inherited from CGraphicFrameShape
IGraphicFrameData *	fFrameData

Detailed Description

Responsible for drawing candle stock chart page item.

Kaz Yoshikawa

Constructor & Destructor Documentation

Binds the C implementation class onto its ImplementationID making the C code callable by the application * CdlChartShape::CdlChartShape

(

IPMUnknown *

boss

)

Constructor.

Parameters

boss	IN interface ptr from boss object on which this interface is aggregated.

CdlChartShape::~CdlChartShape ( )

virtual

Destructor

Member Function Documentation

void CdlChartShape::DrawShape ( GraphicsData *  gd, int32  flags  )

protectedvirtual

Called by the parent class Draw() method. Responsible for drawing everything in the bounds of this object.

Parameters

gd	IN The current drawing context.
flags	IN The IShape drawing flags for the current drawing context.

Reimplemented from CGraphicFrameShape.
