#include <DVBasePanelView.h>

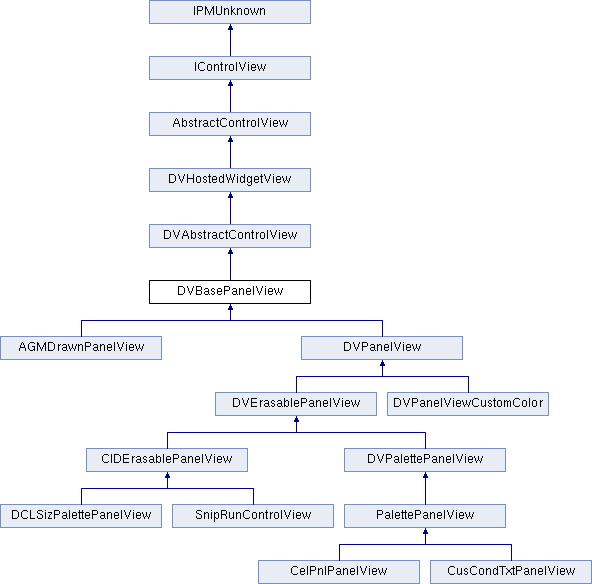

Inheritance diagram for DVBasePanelView:

Public Member Functions
	DVBasePanelView (IPMUnknown *boss)

virtual void	Show (bool16 doShow=kTrue)

virtual void	Hide ()

virtual void	ParentsVisibleStateChanged (bool16 visible)

virtual void	WindowActivated ()

virtual void	WindowDeactivated ()

virtual void	Hilite (bool16 doHilite=kTrue)

virtual void	Unhilite ()

virtual void	WindowShown ()

virtual void	WindowHidden ()

virtual void	WindowChanged ()

virtual void	WindowClosed ()

virtual void	DoPostCreate ()

virtual void	ParentPurged ()

virtual void	InvalidateTransform ()

virtual void	SetWantsMouseEventBeforeChildren ()

virtual void	DV_Draw (dvaui::drawbot::Drawbot *drawbotP) const

Public Member Functions inherited from DVAbstractControlView
	DVAbstractControlView (IPMUnknown *boss)

virtual void	Draw (IViewPort *viewPort, SysRgn updateRgn)

Public Member Functions inherited from DVHostedWidgetView
	DVHostedWidgetView (IPMUnknown *boss)

virtual void	ReadWrite (IPMStream *s, ImplementationID prop)

virtual void	SetFrame (const PMRect &newFrame, bool16 invalidate=kTrue)

virtual const PMRect &	GetFrame () const

virtual const PMRect	GetLocalFrame () const

virtual PMRect	GetInnerContentFrame () const

virtual void	Resize (const PMPoint &newDimensions, bool16 invalidate=kTrue)

virtual void	MoveTo (const PMPoint &where, bool16 invalidate=kTrue)

virtual void	SetFrameBinding (const FrameBinding &binding)

virtual FrameBinding	GetFrameBinding () const

virtual void	AdaptToParentsSize (const PMPoint &dimensions)

virtual void	AdaptToChildsGeometry (const PMPoint &delta, const FrameBinding &childsBinding, bool16 invalidate=kFalse)

virtual SysRgn	GetDrawRegion ()

virtual bool16	DrawRegionEncompassesChildRegions () const

virtual void	DeleteDrawRegion ()

virtual int32	HitTest (const SysPoint &where)

virtual void	ForceRedraw (SysRgn invalidRgn, bool16 forceRedraw)

virtual void	Invalidate (PMRect *bbox=nil)

virtual void	Validate (PMRect *bbox=nil)

virtual bool16	IsHilited () const

virtual bool16	IsRolledOver () const

virtual bool16	GetVisibleState () const

virtual bool16	IsVisible (bool16 requireVisibleWindow=kFalse) const

virtual void	Enable (bool16 doEnable, bool16 invalidate)

virtual void	Disable (bool16 invalidate)

virtual bool16	GetEnableState () const

virtual bool16	IsEnabled () const

virtual void	ParentsEnableStateChanged (bool16 enable, bool16 invalidate)

virtual void	Init (const WidgetID &widgetId=kDefaultWidgetId, const PMRect &bbox=kZeroRect, RsrcID rsrcID=0)

virtual void	DoAutoDetach ()

virtual PMRect	GlobalToView (const PMRect &convertRect) const

virtual PMPoint	GlobalToView (const PMPoint &convertPoint) const

virtual PMRect	GlobalToWindow (const PMRect &convertRect) const

virtual PMPoint	GlobalToWindow (const PMPoint &convertPoint) const

virtual PMRect	ViewToGlobal (const PMRect &convertRect) const

virtual PMPoint	ViewToGlobal (const PMPoint &convertPoint) const

virtual PMRect	WindowToGlobal (const PMRect &convertRect) const

virtual PMPoint	WindowToGlobal (const PMPoint &convertPoint) const

virtual void	SetClipToSelfEnabled (bool16 clipChildren) const

bool16	IsWidgetConstructionFinished () const

void	WidgetConstructionFinished (const bool16 bFlag)

void	MarkDisabledByNonSuppressedUIIfRequired (const bool16 bFlag)

void	MarkHiddenByNonSuppressedUIIfRequired (const bool16 bFlag)

bool16	IsDisabledBySuppressedUI () const

void	DisableBySuppressedUI (const bool16 bFlag)

bool16	IsHiddenBySuppressedUI () const

void	HideBySuppressedUI (const bool16 bFlag)

Public Member Functions inherited from AbstractControlView
	AbstractControlView (IPMUnknown *boss)

virtual RsrcID	GetRsrcID () const

virtual void	SetRsrcID (const RsrcID &id)

virtual PluginID	GetRsrcPluginID () const

virtual void	SetRsrcPluginID (const PluginID &id)

virtual WidgetID	GetWidgetID () const

virtual void	SetWidgetID (const WidgetID &id)

virtual PMPoint	ConstrainDimensions (const PMPoint &dimensions) const

virtual SysRect	GetBBox () const

virtual PMMatrix *	GetContentToWindowTransform () const

virtual void	ContentToWindowTransform (PMPoint *point) const

virtual void	ContentToWindowTransform (PMRect *rect) const

virtual void	ContentToWindowTransform (PMPolygon4 *poly) const

virtual void	WindowToContentTransform (PMPoint *point) const

virtual void	WindowToContentTransform (PMRect *rect) const

virtual void	WindowToContentTransform (PMPolygon4 *poly) const

virtual PMMatrix	GetContentToWindowMatrix () const

virtual PMMatrix	GetWindowToContentMatrix () const

virtual PMRect	GetContentBounds_ () const

virtual void	DoAutoAttach ()

Public Member Functions inherited from IControlView
void	ShowView (bool16 doShow=kTrue)

void	HideView ()

Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0

virtual void	AddRef () const =0

virtual void	Release () const =0

Protected Member Functions
void	SetWantsToDrawWithAGM (bool drawWithAGM=true)

Additional Inherited Members
Public Types inherited from IControlView
enum	{ kDefaultIID = IID_ICONTROLVIEW }

Static Public Member Functions inherited from DVAbstractControlView
static void	PreDraw (IViewPort viewPort, IControlView iView, int32 &setupFlagsOut, ICMSProofing *cmsProof)

static void	PostDraw (IViewPort viewPort, IControlView iView, int32 setupFlagsIn, ICMSProofing *cmsProof)

Protected Attributes inherited from DVHostedWidgetView
unsigned int	fGeometryBusy: 1

Detailed Description

Drover widget base class for panel views. It's expected this will be used as a base for specific panel view implementations (see DVPanelView.h and DVGroupPanelView.h for examples).

Member Function Documentation

virtual void DVBasePanelView::DoPostCreate ( )

virtual

Default implementation resets transform and panorama. Subclasses sometimes override this to do some delayed initialization.

Reimplemented from DVHostedWidgetView.

Reimplemented in AGMDrawnPanelView, CelPnlPanelView, and DVPanelView.

virtual void DVBasePanelView::DV_Draw ( dvaui::drawbot::Drawbot * drawbotP ) const

virtual

override of DVHostedWidgetView::DV_Draw, the droverized ControlView drawing method. Intended for internal use only, but a few simple drawing primitives are available in DVPublicUtilities.h. This implementation sets up an offscreen graphics port and calls the traditional Draw method.

Reimplemented from DVAbstractControlView.

Reimplemented in DVErasablePanelView, DVPalettePanelView, and DVPanelViewCustomColor.

virtual void DVBasePanelView::Hide ( )

virtual

Sets visible flag. Causes inval. Does AutoDetach of observer

Reimplemented from DVHostedWidgetView.

virtual void DVBasePanelView::Hilite ( bool16 doHilite = kTrue )

virtual

Sets stored value.

Reimplemented from DVHostedWidgetView.

virtual void DVBasePanelView::InvalidateTransform ( )

virtual

Default implementation throws away cached Transform. Next call to GetContentToWindowTransform will recalculate it. Subclasses rarely override this method

Reimplemented from AbstractControlView.

virtual void DVBasePanelView::ParentPurged ( )

virtual

Default implementation invalidates transform, destroys system control, deletes draw region

Reimplemented from AbstractControlView.

virtual void DVBasePanelView::ParentsVisibleStateChanged ( bool16 visible )

virtual

Does AutoAttach or AutoDetach of observer

Reimplemented from AbstractControlView.

virtual void DVBasePanelView::Show ( bool16 doShow = kTrue )

virtual

Sets visible flag. Causes inval. Does AutoAttach or AutoDetach of observer

Reimplemented from DVHostedWidgetView.

virtual void DVBasePanelView::Unhilite ( )

virtual

Sets stored value.

Reimplemented from DVHostedWidgetView.

virtual void DVBasePanelView::WindowActivated ( )

virtual

Default implementation does nothing

Reimplemented from AbstractControlView.

virtual void DVBasePanelView::WindowChanged ( )

virtual

Default implementation Auto attaches/detaches observer, invalidates transform, destroys system control

Reimplemented from AbstractControlView.

virtual void DVBasePanelView::WindowClosed ( )

virtual

Default implementation invalidates transform, destroys system control, deletes draw region

Reimplemented from AbstractControlView.

virtual void DVBasePanelView::WindowDeactivated ( )

virtual

Default implementation does nothing

Reimplemented from AbstractControlView.

virtual void DVBasePanelView::WindowHidden ( )

virtual

Default implementation AutoDetaches observer

Reimplemented from AbstractControlView.

virtual void DVBasePanelView::WindowShown ( )

virtual

Default implementation AutoAttaches observer

Reimplemented from AbstractControlView.
