AbstractControlView Class Reference

#include <AbstractControlView.h>

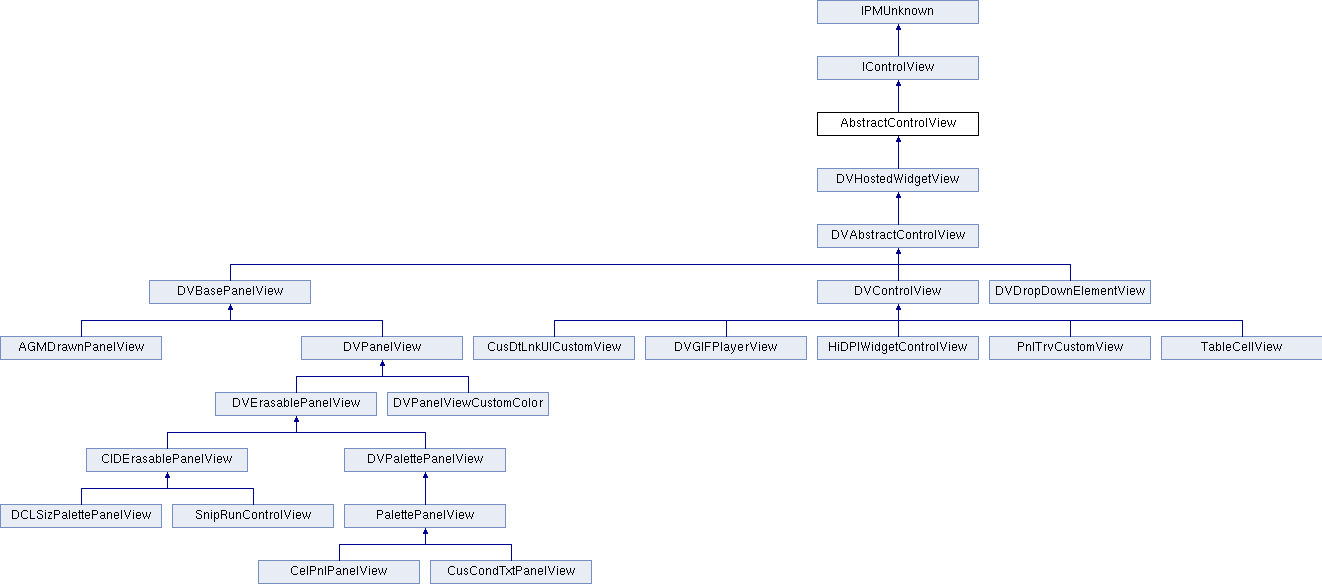

Inheritance diagram for AbstractControlView:

Public Member Functions
	AbstractControlView (IPMUnknown *boss)
virtual void	ReadWrite (IPMStream *s, ImplementationID prop)
virtual void	Init (const WidgetID &widgetId=kDefaultWidgetId, const PMRect &bbox=kZeroRect, RsrcID rsrcID=0)
virtual void	DoPostCreate ()
virtual RsrcID	GetRsrcID () const
virtual void	SetRsrcID (const RsrcID &id)
virtual PluginID	GetRsrcPluginID () const
virtual void	SetRsrcPluginID (const PluginID &id)
virtual WidgetID	GetWidgetID () const
virtual void	SetWidgetID (const WidgetID &id)
virtual void	SetFrame (const PMRect &newFrame, bool16 invalidate=kTrue)=0
virtual const PMRect &	GetFrame () const =0
virtual void	Resize (const PMPoint &newDimensions, bool16 invalidate=kTrue)=0
virtual void	MoveTo (const PMPoint &where, bool16 invalidate=kTrue)=0
virtual void	SetFrameBinding (const FrameBinding &binding)
virtual FrameBinding	GetFrameBinding () const
virtual void	AdaptToParentsSize (const PMPoint &dimensions)=0
virtual void	AdaptToChildsGeometry (const PMPoint &delta, const FrameBinding &childsBinding, bool16 invalidate=kFalse)=0
virtual PMPoint	ConstrainDimensions (const PMPoint &dimensions) const
virtual SysRgn	GetDrawRegion ()=0
virtual bool16	DrawRegionEncompassesChildRegions () const =0
virtual SysRect	GetBBox () const
virtual PMMatrix *	GetContentToWindowTransform () const
virtual void	ContentToWindowTransform (PMPoint *point) const
virtual void	ContentToWindowTransform (PMRect *rect) const
virtual void	ContentToWindowTransform (PMPolygon4 *poly) const
virtual void	WindowToContentTransform (PMPoint *point) const
virtual void	WindowToContentTransform (PMRect *rect) const
virtual void	WindowToContentTransform (PMPolygon4 *poly) const
virtual PMMatrix	GetContentToWindowMatrix () const
virtual PMMatrix	GetWindowToContentMatrix () const
virtual PMRect	GetContentBounds_ () const
virtual void	InvalidateTransform ()
virtual void	DeleteDrawRegion ()=0
virtual int32	HitTest (const SysPoint &where)=0
virtual void	Draw (IViewPort *viewPort, SysRgn updateRgn)=0
virtual void	ForceRedraw (SysRgn invalidRgn, bool16 forceRedraw)=0
virtual void	Invalidate (PMRect *bbox=nil)=0
virtual void	Validate (PMRect *bbox=nil)=0
virtual void	Hilite (bool16 doHilite=kTrue)=0
virtual void	Unhilite ()=0
virtual bool16	IsHilited () const =0
virtual bool16	IsRolledOver () const =0
virtual void	Show (bool16 doShow)=0
virtual void	Hide ()=0
virtual bool16	GetVisibleState () const =0
virtual bool16	IsVisible (bool16 requireVisibleWindow=kFalse) const =0
virtual void	ParentsVisibleStateChanged (bool16 visible)
virtual void	Enable (bool16 doEnable, bool16 invalidate)=0
virtual void	Disable (bool16 invalidate)=0
virtual bool16	GetEnableState () const =0
virtual bool16	IsEnabled () const =0
virtual void	ParentsEnableStateChanged (bool16 enable, bool16 invalidate)=0
virtual void	WindowActivated ()
virtual void	WindowDeactivated ()
virtual void	WindowShown ()
virtual void	WindowHidden ()
virtual void	WindowChanged ()
virtual void	WindowClosed ()
virtual void	ParentPurged ()
virtual void	DoAutoAttach ()
virtual void	DoAutoDetach ()
Public Member Functions inherited from IControlView
virtual void	SetClipToSelfEnabled (bool16 clipChildren) const =0
virtual const PMRect	GetLocalFrame () const =0
virtual PMRect	GlobalToView (const PMRect &convertRect) const =0
virtual PMPoint	GlobalToView (const PMPoint &convertPoint) const =0
virtual PMRect	GlobalToWindow (const PMRect &convertRect) const =0
virtual PMPoint	GlobalToWindow (const PMPoint &convertPoint) const =0
virtual PMRect	ViewToGlobal (const PMRect &convertRect) const =0
virtual PMPoint	ViewToGlobal (const PMPoint &convertPoint) const =0
virtual PMRect	WindowToGlobal (const PMRect &convertRect) const =0
virtual PMPoint	WindowToGlobal (const PMPoint &convertPoint) const =0
void	ShowView (bool16 doShow=kTrue)
void	HideView ()
Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0
virtual void	AddRef () const =0
virtual void	Release () const =0

Protected Member Functions
virtual void	SetVisibleState (bool16 isVisible=kTrue)=0
virtual void	SetEnableState (bool16 isVisible=kTrue)=0
virtual bool16	AncestorsAreVisible (bool16 requireVisibleWindow) const =0
virtual bool16	AncestorsAreEnabled () const
IPMUnknown *	QueryParentFor (const PMIID &interfaceID) const
void	NotifyParent (const WidgetAttributeID &id)
virtual PMMatrix *	GetUpdatedContentToWindowTransform ()=0
virtual void	CreateDrawRegion (SysRgn &drawRgn)=0
virtual PMMatrix *	CreateTransform ()
void	DestroyContentTransform ()
virtual void	DestroyWrappedSystemControls ()
virtual bool16	IsAutoAttached () const =0
virtual void	SetIsAutoAttached (bool16 flag=kTrue)=0
virtual void	HandleAutoAttach ()
virtual void	HandleAutoDetach ()
virtual void	SetRsrcID (const RsrcID &id, const bool isDarkIcon)

Protected Attributes
WidgetID	fWidgetId
PMRsrcID	fRsrcId
FrameBinding	fFrameBinding
PMRect	fFrame
PMMatrix *	fContentTransform

Additional Inherited Members
Public Types inherited from IControlView
enum	{ kDefaultIID = IID_ICONTROLVIEW }

Detailed Description

This class is a new base class used to implement IControlView for essentially all widgets. It's purpose is to isolate Drover-based widgets from some of the assumptions found in CControlView related to wrapping platform widgets. Implementations in AbstractControlView must be independent of how the ControlView is actually implemented - so it deals mostly with identification, notification, common data, etc.

See Also

IControlView, CControlView, DVControlView

Member Function Documentation

virtual void AbstractControlView::AdaptToChildsGeometry ( const PMPoint &  delta, const FrameBinding &  childsBinding, bool16  invalidate = kFalse  )

pure virtual

Resizes based on the current binding setting of child. Subclasses rarely override this method

Implements IControlView.

Implemented in DVHostedWidgetView.

virtual void AbstractControlView::AdaptToParentsSize ( const PMPoint &  dimensions )

pure virtual

Resizes based on the current binding setting. Subclasses rarely override this method

Implements IControlView.

Implemented in DVHostedWidgetView.

virtual bool16 AbstractControlView::AncestorsAreEnabled ( ) const

protectedvirtual

Checks if all parents of this widget are enabled.

virtual bool16 AbstractControlView::AncestorsAreVisible ( bool16  requireVisibleWindow ) const

protectedpure virtual

Checks if all parents of this widget are visible. Optionally check the window as well

Implemented in DVHostedWidgetView.

virtual PMPoint AbstractControlView::ConstrainDimensions ( const PMPoint &  dimensions ) const

virtual

Default implementation just returns the dimensions passed in. If your widget has some limits on how it resizes(e.g. only want to grow shrink in increments of a row height or something) you need to override this method.

Implements IControlView.

Reimplemented in CelPnlPanelView, DCLSizPalettePanelView, CusCondTxtPanelView, and SnipRunControlView.

virtual void AbstractControlView::CreateDrawRegion ( SysRgn &  drawRgn )

protectedpure virtual

Return a region that defines the drawing area of the control.  Default implementation creates a region from the control bbox.

Overriding this allows you to create a different draw region. Some controls do this to draw a drop shadow outside the bounds of the control. Your draw region should not extend beyond your parent's draw region, so your draw region should usually be an intersection of your adjusted bbox and your parent's draw region.

Implemented in DVHostedWidgetView.

virtual PMMatrix* AbstractControlView::CreateTransform ( )

protectedvirtual

Allocates a new transform. Subclasses rarely need to override this method

virtual void AbstractControlView::DeleteDrawRegion ( )

pure virtual

Default implementation throws away cached Draw Region. Next call to GetDrawRegion will recalculate it. Subclasses rarely override this method

Implements IControlView.

Implemented in DVHostedWidgetView.

void AbstractControlView::DestroyContentTransform ( )

protected

Frees the content Transform.

virtual void AbstractControlView::DestroyWrappedSystemControls ( )

protectedvirtual

Destroy any platform controls wrapped by this control. Does nothing by default - see CControlView

virtual void AbstractControlView::Disable ( bool16  invalidate )

pure virtual

Sets enable flag. Optionally causes inval.

Implements IControlView.

Implemented in DVHostedWidgetView, and DVDropDownElementView.

virtual void AbstractControlView::DoAutoAttach ( )

virtual

Calls the AutoAttach method of the observer on the same boss with IID_IOBSERVER, plus attaches additional observers using the IControlViewObservers interface

Implements IControlView.

virtual void AbstractControlView::DoAutoDetach ( )

virtual

Calls the AutoDetach method of the observer on the same boss with IID_IOBSERVER, plus detaches additional observers using the IControlViewObservers interface

Implements IControlView.

Reimplemented in DVHostedWidgetView.

virtual void AbstractControlView::DoPostCreate ( )

virtual

Default implementation resets transform and panorama. Subclasses sometimes override this to do some delayed initialization.

Implements IControlView.

Reimplemented in AGMDrawnPanelView, DVGIFPlayerView, CelPnlPanelView, DVBasePanelView, DVHostedWidgetView, and DVPanelView.

virtual void AbstractControlView::Draw ( IViewPort *  viewPort, SysRgn  updateRgn  )

pure virtual

Draw the control. All subclasses must override.

Implements IControlView.

Implemented in DVHostedWidgetView, CusDtLnkUICustomView, PnlTrvCustomView, TableCellView, AGMDrawnPanelView, DVAbstractControlView, DVDropDownElementView, and HiDPIWidgetControlView.

virtual bool16 AbstractControlView::DrawRegionEncompassesChildRegions ( ) const

pure virtual

As a default, Child regions will be contained within their parent's draw region(returns kTrue), but this can be overridden by some views to indicate that child regions are independant of their parent regions.

Implements IControlView.

Implemented in DVHostedWidgetView.

virtual void AbstractControlView::Enable ( bool16  doEnable, bool16  invalidate  )

pure virtual

Sets enable flag. Optionally causes inval.

Implements IControlView.

Implemented in DVHostedWidgetView, and DVDropDownElementView.

virtual void AbstractControlView::ForceRedraw ( SysRgn  invalidRgn, bool16  forceRedraw  )

pure virtual

Force the control to redraw, or just the invalid region passed in.

Implements IControlView.

Implemented in DVHostedWidgetView.

virtual SysRect AbstractControlView::GetBBox ( ) const

virtual

Returns value based on Frame and transform.

Implements IControlView.

virtual PMMatrix* AbstractControlView::GetContentToWindowTransform ( ) const

virtual

Default implementation returns cached transform, or uses bbox and panorama to calculate the current transform. Subclasses rarely override this method

Implements IControlView.

virtual SysRgn AbstractControlView::GetDrawRegion ( )

pure virtual

Returns stored value, or calls CreateDrawRegion if it doesn't have one. Subclasses rarely override this method

Implements IControlView.

Implemented in DVHostedWidgetView.

virtual bool16 AbstractControlView::GetEnableState ( ) const

pure virtual

Returns stored value. Subclasses rarely override this method

Implements IControlView.

Implemented in DVHostedWidgetView.

virtual const PMRect& AbstractControlView::GetFrame ( ) const

pure virtual

Returns Frame of widget.

Implements IControlView.

Implemented in DVHostedWidgetView.

virtual FrameBinding AbstractControlView::GetFrameBinding ( ) const

virtual

Returns stored value. Subclasses rarely override this method

Implements IControlView.

Reimplemented in DVHostedWidgetView.

virtual RsrcID AbstractControlView::GetRsrcID ( ) const

virtual

Returns stored value. Subclasses rarely override this method

Implements IControlView.

virtual PluginID AbstractControlView::GetRsrcPluginID ( ) const

virtual

Returns stored value. Subclasses rarely override this method

Implements IControlView.

virtual PMMatrix* AbstractControlView::GetUpdatedContentToWindowTransform ( )

protectedpure virtual

Calculates new transform from current bbox and panorama. Subclasses usually don't need to override this method

Implemented in DVHostedWidgetView.

virtual bool16 AbstractControlView::GetVisibleState ( ) const

pure virtual

Returns stored value. Subclasses rarely override this method

Implements IControlView.

Implemented in DVHostedWidgetView.

virtual WidgetID AbstractControlView::GetWidgetID ( ) const

virtual

Returns stored value. Subclasses rarely override this method

Implements IControlView.

virtual void AbstractControlView::HandleAutoAttach ( )

protectedvirtual

As control views are enabled, activated and shown we only want to call Attach once. These

methods make sure that AutoAttach is only called once.

virtual void AbstractControlView::HandleAutoDetach ( )

protectedvirtual

As control views are disabled, deactivated and hidden we only want to call Detach once. These

methods make sure that AutoDetach is only called once.

virtual void AbstractControlView::Hide ( )

pure virtual

Sets visible flag. Causes inval. Does AutoDetach of observer

Implements IControlView.

Implemented in DVHostedWidgetView, and DVBasePanelView.

virtual void AbstractControlView::Hilite ( bool16  doHilite = kTrue )

pure virtual

Sets stored value.

Implements IControlView.

Implemented in DVHostedWidgetView, and DVBasePanelView.

virtual int32 AbstractControlView::HitTest ( const SysPoint &  where )

pure virtual

Default implementation returns kTrue if the passed in point is within the bbox of the control view. Subclasses who want different hittest behavior must override this method.

Implements IControlView.

Implemented in DVHostedWidgetView.

virtual void AbstractControlView::Init ( const WidgetID &  widgetId = kDefaultWidgetId, const PMRect &  bbox = kZeroRect, RsrcID  rsrcID = 0  )

virtual

Default implementation just stores off WidgetID, bbox, and RsrcID

Implements IControlView.

Reimplemented in DVHostedWidgetView, CusDtLnkUICustomView, and PnlTrvCustomView.

virtual void AbstractControlView::Invalidate ( PMRect *  bbox = nil )

pure virtual

Inval the draw region of this control, or just the bbox passed in.

Implements IControlView.

Implemented in DVHostedWidgetView.

virtual void AbstractControlView::InvalidateTransform ( )

virtual

Default implementation throws away cached Transform. Next call to GetContentToWindowTransform will recalculate it. Subclasses rarely override this method

Implements IControlView.

Reimplemented in DVBasePanelView.

virtual bool16 AbstractControlView::IsAutoAttached ( ) const

protectedpure virtual

Check if AutoAttach was called more recently than AutoDetach

Implemented in DVHostedWidgetView.

virtual bool16 AbstractControlView::IsEnabled ( ) const

pure virtual

Returns stored value. Subclasses rarely override this method

Implements IControlView.

Implemented in DVHostedWidgetView.

virtual bool16 AbstractControlView::IsHilited ( ) const

pure virtual

Returns stored value.

Implements IControlView.

Implemented in DVHostedWidgetView.

virtual bool16 AbstractControlView::IsRolledOver ( ) const

pure virtual

Returns stored value.

Implements IControlView.

Implemented in DVHostedWidgetView.

virtual bool16 AbstractControlView::IsVisible ( bool16  requireVisibleWindow = kFalse ) const

pure virtual

Returns stored value. Subclasses rarely override this method

Implements IControlView.

Implemented in DVHostedWidgetView.

virtual void AbstractControlView::MoveTo ( const PMPoint &  where, bool16  invalidate = kTrue  )

pure virtual

Moves the widget. Invals appropriately.

Implements IControlView.

Implemented in DVHostedWidgetView.

void AbstractControlView::NotifyParent ( const WidgetAttributeID &  id )

protected

Notify parent of an attrubute change, such as kWidgetSize

virtual void AbstractControlView::ParentPurged ( )

virtual

Default implementation invalidates transform, destroys system control, deletes draw region

Implements IControlView.

Reimplemented in DVBasePanelView.

virtual void AbstractControlView::ParentsEnableStateChanged ( bool16  enable, bool16  invalidate  )

pure virtual

Default implementation just invals(if requested to)

Implements IControlView.

Implemented in DVHostedWidgetView.

virtual void AbstractControlView::ParentsVisibleStateChanged ( bool16  visible )

virtual

Does AutoAttach or AutoDetach of observer

Implements IControlView.

Reimplemented in DVBasePanelView.

IPMUnknown* AbstractControlView::QueryParentFor ( const PMIID &  interfaceID ) const

protected

Convenience method to make it easier to get your window or your parent view. Continues querying up the widget hierarchy until a boss with the requested interface is found.

virtual void AbstractControlView::Resize ( const PMPoint &  newDimensions, bool16  invalidate = kTrue  )

pure virtual

Resizes the widget. Invals appropriately.

Implements IControlView.

Implemented in CelPnlPanelView, DVHostedWidgetView, and SnipRunControlView.

virtual void AbstractControlView::SetFrame ( const PMRect &  newFrame, bool16  invalidate = kTrue  )

pure virtual

Moves and resizes the widget. Invals appropriately.

Implements IControlView.

Implemented in DVHostedWidgetView.

virtual void AbstractControlView::SetFrameBinding ( const FrameBinding &  binding )

virtual

Sets stored value. Subclasses rarely override this method

Implements IControlView.

Reimplemented in DVHostedWidgetView.

virtual void AbstractControlView::SetRsrcID ( const RsrcID &  id )

virtual

Sets stored value. Subclasses rarely override this method

Implements IControlView.

virtual void AbstractControlView::SetRsrcID ( const RsrcID &  id, const bool  isDarkIcon  )

protectedvirtual

Sets stored value. Used for setting icon at a particular theme. Subclasses rarely override this method

Implements IControlView.

virtual void AbstractControlView::SetRsrcPluginID ( const PluginID &  id )

virtual

Sets stored value. Subclasses rarely override this method

Implements IControlView.

virtual void AbstractControlView::SetVisibleState ( bool16  isVisible = kTrue )

protectedpure virtual

Changes value of state flag, no side effects

Implemented in DVHostedWidgetView.

virtual void AbstractControlView::SetWidgetID ( const WidgetID &  id )

virtual

Sets stored value. Subclasses rarely override this method

Implements IControlView.

virtual void AbstractControlView::Show ( bool16  doShow )

pure virtual

Sets visible flag. Causes inval. Does AutoAttach or AutoDetach of observer

Implements IControlView.

Implemented in DVHostedWidgetView, and DVBasePanelView.

virtual void AbstractControlView::Unhilite ( )

pure virtual

Sets stored value.

Implements IControlView.

Implemented in DVHostedWidgetView, and DVBasePanelView.

virtual void AbstractControlView::Validate ( PMRect *  bbox = nil )

pure virtual

Validate the draw region of this control, or just the bbox passed in.

Implements IControlView.

Implemented in DVHostedWidgetView.

virtual void AbstractControlView::WindowActivated ( )

virtual

Default implementation does nothing

Implements IControlView.

Reimplemented in DVBasePanelView.

virtual void AbstractControlView::WindowChanged ( )

virtual

Default implementation Auto attaches/detaches observer, invalidates transform, destroys system control

Implements IControlView.

Reimplemented in DVBasePanelView.

virtual void AbstractControlView::WindowClosed ( )

virtual

Default implementation invalidates transform, destroys system control, deletes draw region

Implements IControlView.

Reimplemented in DVBasePanelView.

virtual void AbstractControlView::WindowDeactivated ( )

virtual

Default implementation does nothing

Implements IControlView.

Reimplemented in DVBasePanelView.

virtual void AbstractControlView::WindowHidden ( )

virtual

Default implementation AutoDetaches observer

Implements IControlView.

Reimplemented in DVBasePanelView.

virtual void AbstractControlView::WindowShown ( )

virtual

Default implementation AutoAttaches observer

Implements IControlView.

Reimplemented in DVBasePanelView.
