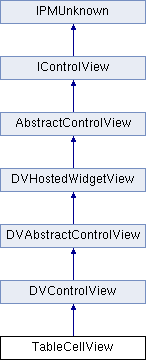

Inheritance diagram for TableCellView:

Public Member Functions
	TableCellView (IPMUnknown *boss)

	~TableCellView ()

virtual void	Draw (IViewPort *vp, SysRgn updateRgn)

Public Member Functions inherited from DVControlView
	DVControlView (IPMUnknown *boss)

Public Member Functions inherited from DVAbstractControlView
	DVAbstractControlView (IPMUnknown *boss)

virtual void	DV_Draw (dvaui::drawbot::Drawbot *drawbotP) const

Public Member Functions inherited from DVHostedWidgetView
	DVHostedWidgetView (IPMUnknown *boss)

virtual void	DoPostCreate ()

virtual void	ReadWrite (IPMStream *s, ImplementationID prop)

virtual void	SetFrame (const PMRect &newFrame, bool16 invalidate=kTrue)

virtual const PMRect &	GetFrame () const

virtual const PMRect	GetLocalFrame () const

virtual PMRect	GetInnerContentFrame () const

virtual void	Resize (const PMPoint &newDimensions, bool16 invalidate=kTrue)

virtual void	MoveTo (const PMPoint &where, bool16 invalidate=kTrue)

virtual void	SetFrameBinding (const FrameBinding &binding)

virtual FrameBinding	GetFrameBinding () const

virtual void	AdaptToParentsSize (const PMPoint &dimensions)

virtual void	AdaptToChildsGeometry (const PMPoint &delta, const FrameBinding &childsBinding, bool16 invalidate=kFalse)

virtual SysRgn	GetDrawRegion ()

virtual bool16	DrawRegionEncompassesChildRegions () const

virtual void	DeleteDrawRegion ()

virtual int32	HitTest (const SysPoint &where)

virtual void	ForceRedraw (SysRgn invalidRgn, bool16 forceRedraw)

virtual void	Invalidate (PMRect *bbox=nil)

virtual void	Validate (PMRect *bbox=nil)

virtual void	Hilite (bool16 doHilite=kTrue)

virtual void	Unhilite ()

virtual bool16	IsHilited () const

virtual bool16	IsRolledOver () const

virtual void	Show (bool16 doShow)

virtual void	Hide ()

virtual bool16	GetVisibleState () const

virtual bool16	IsVisible (bool16 requireVisibleWindow=kFalse) const

virtual void	Enable (bool16 doEnable, bool16 invalidate)

virtual void	Disable (bool16 invalidate)

virtual bool16	GetEnableState () const

virtual bool16	IsEnabled () const

virtual void	ParentsEnableStateChanged (bool16 enable, bool16 invalidate)

virtual void	Init (const WidgetID &widgetId=kDefaultWidgetId, const PMRect &bbox=kZeroRect, RsrcID rsrcID=0)

virtual void	DoAutoDetach ()

virtual PMRect	GlobalToView (const PMRect &convertRect) const

virtual PMPoint	GlobalToView (const PMPoint &convertPoint) const

virtual PMRect	GlobalToWindow (const PMRect &convertRect) const

virtual PMPoint	GlobalToWindow (const PMPoint &convertPoint) const

virtual PMRect	ViewToGlobal (const PMRect &convertRect) const

virtual PMPoint	ViewToGlobal (const PMPoint &convertPoint) const

virtual PMRect	WindowToGlobal (const PMRect &convertRect) const

virtual PMPoint	WindowToGlobal (const PMPoint &convertPoint) const

virtual void	SetClipToSelfEnabled (bool16 clipChildren) const

bool16	IsWidgetConstructionFinished () const

void	WidgetConstructionFinished (const bool16 bFlag)

void	MarkDisabledByNonSuppressedUIIfRequired (const bool16 bFlag)

void	MarkHiddenByNonSuppressedUIIfRequired (const bool16 bFlag)

bool16	IsDisabledBySuppressedUI () const

void	DisableBySuppressedUI (const bool16 bFlag)

bool16	IsHiddenBySuppressedUI () const

void	HideBySuppressedUI (const bool16 bFlag)

Public Member Functions inherited from AbstractControlView
	AbstractControlView (IPMUnknown *boss)

virtual RsrcID	GetRsrcID () const

virtual void	SetRsrcID (const RsrcID &id)

virtual PluginID	GetRsrcPluginID () const

virtual void	SetRsrcPluginID (const PluginID &id)

virtual WidgetID	GetWidgetID () const

virtual void	SetWidgetID (const WidgetID &id)

virtual PMPoint	ConstrainDimensions (const PMPoint &dimensions) const

virtual SysRect	GetBBox () const

virtual PMMatrix *	GetContentToWindowTransform () const

virtual void	ContentToWindowTransform (PMPoint *point) const

virtual void	ContentToWindowTransform (PMRect *rect) const

virtual void	ContentToWindowTransform (PMPolygon4 *poly) const

virtual void	WindowToContentTransform (PMPoint *point) const

virtual void	WindowToContentTransform (PMRect *rect) const

virtual void	WindowToContentTransform (PMPolygon4 *poly) const

virtual PMMatrix	GetContentToWindowMatrix () const

virtual PMMatrix	GetWindowToContentMatrix () const

virtual PMRect	GetContentBounds_ () const

virtual void	InvalidateTransform ()

virtual void	ParentsVisibleStateChanged (bool16 visible)

virtual void	WindowActivated ()

virtual void	WindowDeactivated ()

virtual void	WindowShown ()

virtual void	WindowHidden ()

virtual void	WindowChanged ()

virtual void	WindowClosed ()

virtual void	ParentPurged ()

virtual void	DoAutoAttach ()

Public Member Functions inherited from IControlView
void	ShowView (bool16 doShow=kTrue)

void	HideView ()

Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0

virtual void	AddRef () const =0

virtual void	Release () const =0

Protected Member Functions
void	DrawCell (IGraphicsPort gPort, SysRgn updateRgn, IInterfaceColors colors, const PMRect &frame)

void	DrawContents (IGraphicsPort gPort, SysRgn updateRgn, IInterfaceColors colors, const PMRect &frame)

void	UpdateScrollBar (void)

void	ComputeVerticalScrollBarNewValues (int32 &newMax, int32 &newValue, int32 &newIncrementMultiple)

void	ComputeHorizontalScrollBarNewValues (int32 &newMax, int32 &newValue, int32 &newIncrementMultiple)

Additional Inherited Members
Public Types inherited from IControlView
enum	{ kDefaultIID = IID_ICONTROLVIEW }

Static Public Member Functions inherited from DVAbstractControlView
static void	PreDraw (IViewPort viewPort, IControlView iView, int32 &setupFlagsOut, ICMSProofing *cmsProof)

static void	PostDraw (IViewPort viewPort, IControlView iView, int32 setupFlagsIn, ICMSProofing *cmsProof)

Protected Attributes inherited from DVHostedWidgetView
unsigned int	fGeometryBusy: 1

Detailed Description

This implementation draws the table and the cell contents. TableCellView implements IControlView based on the partial implementation DVControlView.

Constructor & Destructor Documentation

TableCellView::TableCellView ( IPMUnknown * boss )

Constructor.

Parameters

boss	interface ptr from boss object on which this interface is aggregated.

TableCellView::~TableCellView ( )

Destructor.

Member Function Documentation

void TableCellView::ComputeHorizontalScrollBarNewValues	(	int32 &	newMax,
		int32 &	newValue,
		int32 &	newIncrementMultiple
	)

protected

The value of the horizontal scroll bar new case is calculated.

Parameters

newMax	New upper bound on counter range of scrool bar.
newValue	New counter state.
newIncrementMultiple	New increment multiple.

void TableCellView::ComputeVerticalScrollBarNewValues	(	int32 &	newMax,
		int32 &	newValue,
		int32 &	newIncrementMultiple
	)

protected

The value of the vertical scroll bar new case is calculated.

Parameters

newMax	New upper bound on counter range of scrool bar.
newValue	New counter state.
newIncrementMultiple	New increment multiple.

void TableCellView::Draw	(	IViewPort *	vp,
		SysRgn	updateRgn
	)

virtual

Render the contents of the view.

Parameters

vp	ViewPort interface pointer.
updateRgn	Updating region of ViewPort.

Reimplemented from DVAbstractControlView.

void TableCellView::DrawCell	(	IGraphicsPort *	gPort,
		SysRgn	updateRgn,
		IInterfaceColors *	colors,
		const PMRect &	frame
	)

protected

Draws the lines around cells for the TableCellView widget.

Parameters

gPort	The graphic port to draw.
updateRgn	The update region for drawing.
colors	The interface to get a color for UI
frame	The size of the rectangle of the widget.

void TableCellView::DrawContents	(	IGraphicsPort *	gPort,
		SysRgn	updateRgn,
		IInterfaceColors *	colors,
		const PMRect &	frame
	)

protected

Draws contents of cell for the TableCellView widget.

Parameters

gPort	The graphic port to draw.
updateRgn	The update region for drawing.
colors	The interface to get a color for UI
frame	The size of the rectangle of the widget.

void TableCellView::UpdateScrollBar ( void )

protected

Renews the scroll bar positions based on the current state of the TableCellView widget.
