CDialogController Class Reference

#include <CDialogController.h>

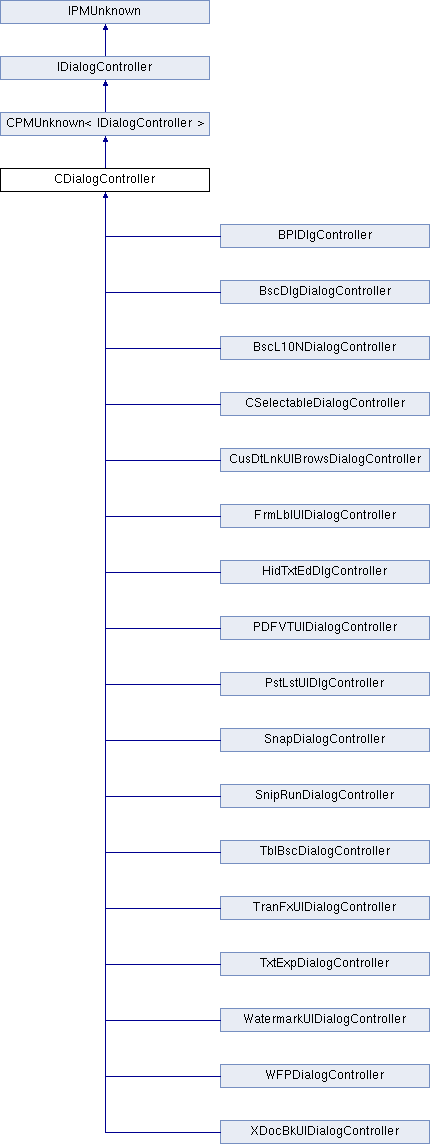

Inheritance diagram for CDialogController:

Public Member Functions
	CDialogController (IPMUnknown *boss)
virtual void	UserCancelled ()
virtual void	ClosingDialog (IActiveContext *lastChanceToUseMyContext)
virtual bool16	HasBeenInitialized () const
virtual void	SetInitialized (bool16 initialized)
virtual void	SetOwner (IControlView *ownerPanel)
virtual IControlView *	GetOwner () const
virtual void	GetName (PMString &name)
Dialog helper methods
virtual void	SetTextControlData (const WidgetID &widgetId, const PMString &text, const IPanelControlData *panel=nil, bool16 invalidate=kTrue, bool16 notifyOfChange=kTrue)
virtual PMString	GetTextControlData (const WidgetID &widgetId, const IPanelControlData *panel=nil) const
virtual void	SetTextValue (const WidgetID &widgetId, const PMReal &value, const IPanelControlData *panel=nil, bool16 invalidate=kTrue, bool16 notifyOfChange=kTrue)
virtual PMReal	GetTextValue (const WidgetID &widgetId, const IPanelControlData *panel=nil, bool16 *outParsingError=nil, bool16 *outIsBlank=nil) const
virtual void	SetTextValueControlState (const WidgetID &widgetId, ITextValue::TextControlState controlState, const IPanelControlData *panel=nil, bool16 invalidate=kTrue, bool16 notifyOfChange=kTrue)
virtual ITextValue::TextControlState	GetTextValueControlState (const WidgetID &widgetId, const IPanelControlData *panel=nil) const
virtual void	SetBooleanControlData (const WidgetID &widgetId, bool16 isChecked, const IPanelControlData *panel=nil, bool16 invalidate=kTrue, bool16 notifyOfChange=kTrue)
virtual bool16	GetBooleanControlData (const WidgetID &widgetId, const IPanelControlData *panel=nil) const
virtual void	SetTriStateControlData (const WidgetID &widgetId, bool16 isSelected, const IPanelControlData *panel=nil, bool16 invalidate=kTrue, bool16 notifyOfChange=kTrue)
virtual void	SetTriStateControlData (const WidgetID &widgetId, ITriStateControlData::TriState triState, const IPanelControlData *panel=nil, bool16 invalidate=kTrue, bool16 notifyOfChange=kTrue)
virtual ITriStateControlData::TriState	GetTriStateControlData (const WidgetID &widgetId, const IPanelControlData *panel=nil) const
virtual WidgetID	GetSelectedClusterWidget (WidgetID cluster, const IPanelControlData *panel=nil)
virtual void	SetSelectedClusterWidget (WidgetID clusterId, WidgetID widgetToSelect, const IPanelControlData *panel=nil, bool16 invalidate=kTrue, bool16 notifyOfChange=kTrue)
virtual IStringListControlData *	QueryListControlDataInterface (const WidgetID &widgetId, const IPanelControlData *panel=nil) const
virtual IPanelControlData *	QueryIfNilElseAddRef (const IPanelControlData *panel) const
virtual void	SelectDialogWidget (const WidgetID &widgetId)
virtual bool16	GetPreviewModeOn ()
virtual void	SetPreviewModeOn (bool16 bOn)
virtual IActiveContext *	QueryDialogContext ()
Public Member Functions inherited from CPMUnknown< IDialogController >
IPMUnknown *	QueryInterface (PMIID interfaceID) const
void	AddRef () const
void	Release () const
void	PreDirty (ImplementationID prop=kInvalidImpl, bool16 allowModification=kTrue)
void	PreDirtyNoMessage (ImplementationID prop=kInvalidImpl, bool16 allowModification=kTrue)
	CPMUnknown (const CPMUnknown &)=delete
CPMUnknown &	operator= (const CPMUnknown &)=delete
Dialog protocol
Dialog query methods
Owner query methods
Previewable dialog methods
Dialog helper methods

Protected Member Functions
virtual void	InitializeDialogFields (IActiveContext *context)
virtual WidgetID	ValidateDialogFields (IActiveContext *myContext)
virtual void	ApplyDialogFields (IActiveContext *myContext, const WidgetID &widgetId)
virtual void	ResetDialogFields (IActiveContext *myContext)
Protected Member Functions inherited from CPMUnknown< IDialogController >
	CPMUnknown (IPMUnknown *boss)

Friends
class	QAFontDlgController

Additional Inherited Members
Public Types inherited from IDialogController
enum	{ kDefaultIID = IID_IDIALOGCONTROLLER }
Protected Attributes inherited from CPMUnknown< IDialogController >
HelperInterface	fHelperInterface

Detailed Description

Basic implementation of the IDialogController interface, used to control dialogs. Implementors of IDialogController should derive from CDialogController.

See Also

IDialogController

Member Function Documentation

virtual void CDialogController::ApplyDialogFields ( IActiveContext *  myContext, const WidgetID &  widgetId  )

protectedvirtual

Override to retrieve data from the widgets in the dialog and apply it. By default the widget with id kOKButtonWidgetID causes an apply. Override Update to have others call "ApplyDialog"

Parameters

myContext	IN the active context
widgetId	IN the widget that triggered the "apply"

Reimplemented in SnapDialogController, PDFVTUIDialogController, SnipRunDialogController, CusDtLnkUIBrowsDialogController, TxtExpDialogController, WatermarkUIDialogController, FrmLblUIDialogController, BscL10NDialogController, BscDlgDialogController, TranFxUIDialogController, WFPDialogController, XDocBkUIDialogController, PstLstUIDlgController, BPIDlgController, TblBscDialogController, HidTxtEdDlgController, and CSelectableDialogController.

virtual void CDialogController::ClosingDialog ( IActiveContext *  lastChanceToUseMyContext )

virtual

Override to be called during the process of closing the dialog, an opportunity to do some special cleanup. Default implementation is empty.

Reimplemented in SnipRunDialogController, XDocBkUIDialogController, and CSelectableDialogController.

virtual bool16 CDialogController::GetBooleanControlData ( const WidgetID &  widgetId, const IPanelControlData *  panel = nil  ) const

virtual

Get the value of a widget that has boolean control data.

Implements IDialogController.

virtual void CDialogController::GetName ( PMString &  name )

virtual

Override to supply the undo/redo name for the dialog. This appears in the edit menu if the user hits "OK" in a previewable dialog. Default implementation returns the window title of the dialog window.

Implements IDialogController.

virtual IControlView* CDialogController::GetOwner ( ) const

virtual

Get the owner panel of this dialog

Returns

the owner panel, may return nil

Implements IDialogController.

virtual bool16 CDialogController::GetPreviewModeOn ( )

virtual

Get the value of the "Preview Mode On" flag (used to be in CDialogObserver).

Implements IDialogController.

virtual WidgetID CDialogController::GetSelectedClusterWidget ( WidgetID  cluster, const IPanelControlData *  panel = nil  )

virtual

Get the selected widget in a cluster

Implements IDialogController.

virtual PMString CDialogController::GetTextControlData ( const WidgetID &  widgetId, const IPanelControlData *  panel = nil  ) const

virtual

Get the text of a widget that has text control data.

Implements IDialogController.

virtual PMReal CDialogController::GetTextValue ( const WidgetID &  widgetId, const IPanelControlData *  panel = nil, bool16 *  outParsingError = nil, bool16 *  outIsBlank = nil  ) const

virtual

Get the value of a widget with an ITextValue interface.

Implements IDialogController.

virtual ITextValue::TextControlState CDialogController::GetTextValueControlState ( const WidgetID &  widgetId, const IPanelControlData *  panel = nil  ) const

virtual

Get the control-state of a widget with an ITextValue interface.

Implements IDialogController.

virtual ITriStateControlData::TriState CDialogController::GetTriStateControlData ( const WidgetID &  widgetId, const IPanelControlData *  panel = nil  ) const

virtual

Get the value of a widget that has tristate control data.

Implements IDialogController.

virtual bool16 CDialogController::HasBeenInitialized ( ) const

virtual

Returns kTrue if InitializeFields() has been called.

Implements IDialogController.

virtual void CDialogController::InitializeDialogFields ( IActiveContext *  context )

protectedvirtual

Should be overriden to initialize each widget in the dialog with its default value. Default implementation is empty.

Parameters

context

IN the active context

Reimplemented in SnapDialogController, PDFVTUIDialogController, SnipRunDialogController, WatermarkUIDialogController, TxtExpDialogController, CusDtLnkUIBrowsDialogController, FrmLblUIDialogController, BPIDlgController, PstLstUIDlgController, TranFxUIDialogController, TblBscDialogController, BscL10NDialogController, HidTxtEdDlgController, WFPDialogController, XDocBkUIDialogController, and BscDlgDialogController.

virtual IActiveContext* CDialogController::QueryDialogContext ( )

virtual

Query for the dialog context established when the dialog was initialized

Implements IDialogController.

virtual IPanelControlData* CDialogController::QueryIfNilElseAddRef ( const IPanelControlData *  panel ) const

virtual

Internal utility routine to do what it sez.

Implements IDialogController.

virtual IStringListControlData* CDialogController::QueryListControlDataInterface ( const WidgetID &  widgetId, const IPanelControlData *  panel = nil  ) const

virtual

Query for the list control data from a widget

Implements IDialogController.

virtual void CDialogController::ResetDialogFields ( IActiveContext *  myContext )

protectedvirtual

Override to modify the default Reset behavior. Called when the user holds down the option/alt key and the cancel button changes to "Reset" and then clicks on the reset button. By default, this function simply calls InitializeDialogFields. For most dialogs, this results in the correct behavior.

Parameters

myContext

IN the active context

Reimplemented in CSelectableDialogController.

virtual void CDialogController::SelectDialogWidget ( const WidgetID &  widgetId )

virtual

This method is typically used in conjuntion with Validate() to select the widget that has "illegal" values.

Implements IDialogController.

Reimplemented in CSelectableDialogController.

virtual void CDialogController::SetBooleanControlData ( const WidgetID &  widgetId, bool16  isChecked, const IPanelControlData *  panel = nil, bool16  invalidate = kTrue, bool16  notifyOfChange = kTrue  )

virtual

Set the value of a widget that has boolean control data.

Implements IDialogController.

virtual void CDialogController::SetInitialized ( bool16  initialized )

virtual

Subclasses can call this to set the initialized state, instead of calling the inherited Initialize functions.

Implements IDialogController.

virtual void CDialogController::SetOwner ( IControlView *  ownerPanel )

virtual

Set the owner panel of this dialog.

Parameters

ownerPanel

IN the owner panel

Implements IDialogController.

virtual void CDialogController::SetPreviewModeOn ( bool16  bOn )

virtual

Set the value of the "Preview Mode On" flag (used to be in CDialogObserver).

Implements IDialogController.

virtual void CDialogController::SetSelectedClusterWidget ( WidgetID  clusterId, WidgetID  widgetToSelect, const IPanelControlData *  panel = nil, bool16  invalidate = kTrue, bool16  notifyOfChange = kTrue  )

virtual

Set the selected widget in a cluster

Implements IDialogController.

virtual void CDialogController::SetTextControlData ( const WidgetID &  widgetId, const PMString &  text, const IPanelControlData *  panel = nil, bool16  invalidate = kTrue, bool16  notifyOfChange = kTrue  )

virtual

Set the text of a widget that has text control data.

Implements IDialogController.

virtual void CDialogController::SetTextValue ( const WidgetID &  widgetId, const PMReal &  value, const IPanelControlData *  panel = nil, bool16  invalidate = kTrue, bool16  notifyOfChange = kTrue  )

virtual

Set the value of a widget with an ITextValue interface.

Implements IDialogController.

virtual void CDialogController::SetTextValueControlState ( const WidgetID &  widgetId, ITextValue::TextControlState  controlState, const IPanelControlData *  panel = nil, bool16  invalidate = kTrue, bool16  notifyOfChange = kTrue  )

virtual

Set the control-state of a widget with an ITextValue interface.

Implements IDialogController.

virtual void CDialogController::SetTriStateControlData ( const WidgetID &  widgetId, bool16  isSelected, const IPanelControlData *  panel = nil, bool16  invalidate = kTrue, bool16  notifyOfChange = kTrue  )

virtual

Set the value of a widget that has tristate control data.

Implements IDialogController.

virtual void CDialogController::SetTriStateControlData ( const WidgetID &  widgetId, ITriStateControlData::TriState  triState, const IPanelControlData *  panel = nil, bool16  invalidate = kTrue, bool16  notifyOfChange = kTrue  )

virtual

Set the value of a widget that has tristate control data.

Implements IDialogController.

virtual void CDialogController::UserCancelled ( )

virtual

Override to be called when the user clicks the "cancel" button. Default implementation is empty.

Implements IDialogController.

Reimplemented in SnipRunDialogController, TxtExpDialogController, and CSelectableDialogController.

virtual WidgetID CDialogController::ValidateDialogFields ( IActiveContext *  myContext )

protectedvirtual

Override to be called when the user clicks the "ok" (or equivalent) button. Use ValidateFields to check that the data in each dialog control is valid and within limits. It's up to the subclass to display an alert if invalid data is found. If one or more of the fields have invalid data, return the WidgetID of the dialog item to select. If all fields are valid, return kDefaultWidgetId. When all fields are valid, the "ApplyDialogFields" function will be called.

Parameters

myContext

IN the active context

Returns

id of the first widget with invalid data

Reimplemented in SnapDialogController, PDFVTUIDialogController, SnipRunDialogController, TxtExpDialogController, WatermarkUIDialogController, CusDtLnkUIBrowsDialogController, FrmLblUIDialogController, BscL10NDialogController, TranFxUIDialogController, BscDlgDialogController, WFPDialogController, XDocBkUIDialogController, and CSelectableDialogController.
