IDialogController Class Reference

#include <IDialogController.h>

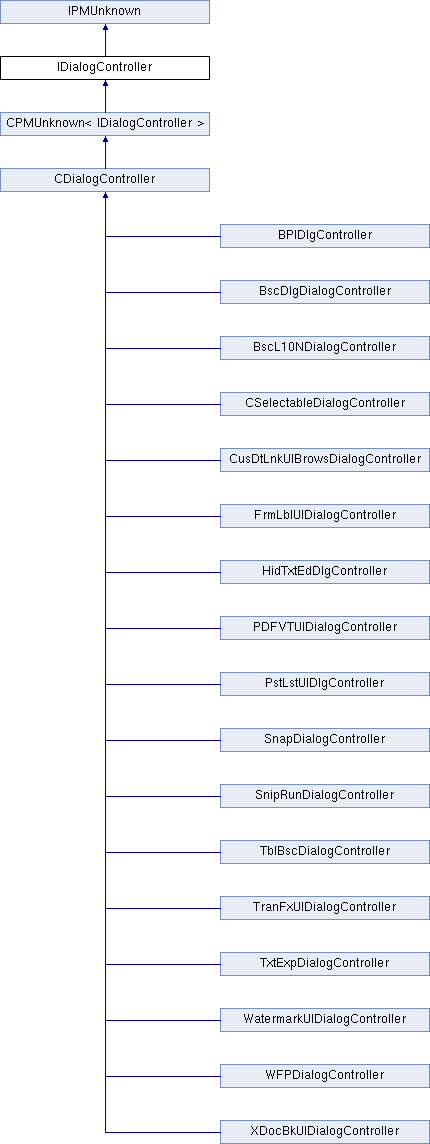

Inheritance diagram for IDialogController:

Public Types
enum	{ kDefaultIID = IID_IDIALOGCONTROLLER }

Public Member Functions
Dialog protocol
virtual void	InitializeDialog (IActiveContext *context)=0
virtual IActiveContext *	QueryDialogContext ()=0
virtual WidgetID	ValidateDialog ()=0
virtual void	ApplyDialog (const WidgetID &widgetId)=0
virtual void	ResetDialog ()=0
virtual void	UserCancelled ()=0
virtual void	DialogClosing ()=0
Dialog query methods
virtual bool16	HasBeenInitialized () const =0
virtual void	SetInitialized (bool16 initialized)=0
Owner query methods
virtual void	SetOwner (IControlView *ownerPanel)=0
virtual IControlView *	GetOwner () const =0
Previewable dialog methods
virtual void	GetName (PMString &name)=0
Dialog helper methods
virtual void	SetTextControlData (const WidgetID &widgetId, const PMString &text, const IPanelControlData *panel=nil, bool16 invalidate=kTrue, bool16 notifyOfChange=kTrue)=0
virtual PMString	GetTextControlData (const WidgetID &widgetId, const IPanelControlData *panel=nil) const =0
virtual void	SetTextValue (const WidgetID &widgetId, const PMReal &value, const IPanelControlData *panel=nil, bool16 invalidate=kTrue, bool16 notifyOfChange=kTrue)=0
virtual PMReal	GetTextValue (const WidgetID &widgetId, const IPanelControlData *panel=nil, bool16 *outParsingError=nil, bool16 *outIsBlank=nil) const =0
virtual void	SetTextValueControlState (const WidgetID &widgetId, ITextValue::TextControlState controlState, const IPanelControlData *panel=nil, bool16 invalidate=kTrue, bool16 notifyOfChange=kTrue)=0
virtual ITextValue::TextControlState	GetTextValueControlState (const WidgetID &widgetId, const IPanelControlData *panel=nil) const =0
virtual void	SetBooleanControlData (const WidgetID &widgetId, bool16 isChecked, const IPanelControlData *panel=nil, bool16 invalidate=kTrue, bool16 notifyOfChange=kTrue)=0
virtual bool16	GetBooleanControlData (const WidgetID &widgetId, const IPanelControlData *panel=nil) const =0
virtual void	SetTriStateControlData (const WidgetID &widgetId, ITriStateControlData::TriState triState, const IPanelControlData *panel=nil, bool16 invalidate=kTrue, bool16 notifyOfChange=kTrue)=0
virtual void	SetTriStateControlData (const WidgetID &widgetId, bool16 isSelected, const IPanelControlData *panel=nil, bool16 invalidate=kTrue, bool16 notifyOfChange=kTrue)=0
virtual ITriStateControlData::TriState	GetTriStateControlData (const WidgetID &widgetId, const IPanelControlData *panel=nil) const =0
virtual WidgetID	GetSelectedClusterWidget (WidgetID cluster, const IPanelControlData *panel=nil)=0
virtual void	SetSelectedClusterWidget (WidgetID clusterId, WidgetID widgetToSelect, const IPanelControlData *panel=nil, bool16 invalidate=kTrue, bool16 notifyOfChange=kTrue)=0
virtual IStringListControlData *	QueryListControlDataInterface (const WidgetID &widgetId, const IPanelControlData *panel=nil) const =0
virtual IPanelControlData *	QueryIfNilElseAddRef (const IPanelControlData *panel) const =0
virtual void	SelectDialogWidget (const WidgetID &widgetId)=0
virtual bool16	GetPreviewModeOn ()=0
virtual void	SetPreviewModeOn (bool16 bOn)=0
Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0
virtual void	AddRef () const =0
virtual void	Release () const =0

Detailed Description

Interface that client code should implement for dialog.

Member Function Documentation

virtual void IDialogController::ApplyDialog ( const WidgetID &  widgetId )

pure virtual

Should be overridden to retrieve data from the widgets in the dialog and apply it. The widget that caused the apply is passed in 'widgetId. By default the widget with id kOKButtonWidgetID causes an apply. Override Update to have others call ApplyFields.

Parameters

widgetId

widget that caused the apply

virtual void IDialogController::DialogClosing ( )

pure virtual

This function is called during the process of closing the dialog. This gives subclassers an opportunity to do some special cleanup.

virtual void IDialogController::GetName ( PMString &  name )

pure virtual

Accessor for name.

Implemented in CDialogController.

virtual IControlView* IDialogController::GetOwner ( ) const

pure virtual

Get the owner panel of this dialog. This function may return nil.

Returns

reference to IControlView interface on panel boss object that owns this dialog, or nil if no current owner.

Implemented in CDialogController.

virtual bool16 IDialogController::GetPreviewModeOn ( )

pure virtual

Access a flag that used to be in CDialogObserver

Implemented in CDialogController.

virtual WidgetID IDialogController::GetSelectedClusterWidget ( WidgetID  cluster, const IPanelControlData *  panel = nil  )

pure virtual

Helper method to get which widget in a cluster is selected

Implemented in CDialogController.

virtual PMString IDialogController::GetTextControlData ( const WidgetID &  widgetId, const IPanelControlData *  panel = nil  ) const

pure virtual

Helper methods for easily getting the text from a widget that has text control data.

Implemented in CDialogController.

virtual PMReal IDialogController::GetTextValue ( const WidgetID &  widgetId, const IPanelControlData *  panel = nil, bool16 *  outParsingError = nil, bool16 *  outIsBlank = nil  ) const

pure virtual

Gets the value of a widget with an ITextValue interface.

Implemented in CDialogController.

virtual ITextValue::TextControlState IDialogController::GetTextValueControlState ( const WidgetID &  widgetId, const IPanelControlData *  panel = nil  ) const

pure virtual

Gets the control-state from a widget(editbox) that has an ITextValue interface.

Implemented in CDialogController.

virtual ITriStateControlData::TriState IDialogController::GetTriStateControlData ( const WidgetID &  widgetId, const IPanelControlData *  panel = nil  ) const

pure virtual

Helper methods for easily getting the state of a widget that has tristate control data.

Implemented in CDialogController.

virtual bool16 IDialogController::HasBeenInitialized ( ) const

pure virtual

Returns kTrue if InitializeFields() has been called.

Implemented in CDialogController.

virtual void IDialogController::InitializeDialog ( IActiveContext *  context )

pure virtual

Should be overridden to initialize each widget in the dialog with its default value.

virtual IStringListControlData* IDialogController::QueryListControlDataInterface ( const WidgetID &  widgetId, const IPanelControlData *  panel = nil  ) const

pure virtual

Query for the data interface of a widget that has list control data.

Implemented in CDialogController.

virtual void IDialogController::ResetDialog ( )

pure virtual

This function is called when the user holds down the option/alt key and the cancel button changes to "Reset" and then clicks on the reset button. By default, this function simply calls InitializeFields. For most dialogs, this results in the correct behavior.

virtual void IDialogController::SelectDialogWidget ( const WidgetID &  widgetId )

pure virtual

This method is typically used in conjuntion with Validate() to select the widget that has "illegal" values.

Implemented in CDialogController, and CSelectableDialogController.

virtual void IDialogController::SetBooleanControlData ( const WidgetID &  widgetId, bool16  isChecked, const IPanelControlData *  panel = nil, bool16  invalidate = kTrue, bool16  notifyOfChange = kTrue  )

pure virtual

Helper methods for easily setting and getting the state of a widget that has boolean control data.

Implemented in CDialogController.

virtual void IDialogController::SetInitialized ( bool16  initialized )

pure virtual

This method exists so that subclasses don't have to call the inherited InitializeFields() function.

Implemented in CDialogController.

virtual void IDialogController::SetOwner ( IControlView *  ownerPanel )

pure virtual

Set the owner panel of this dialog.

Implemented in CDialogController.

virtual void IDialogController::SetPreviewModeOn ( bool16  bOn )

pure virtual

Manage a flag that used to be in CDialogObserver

Implemented in CDialogController.

virtual void IDialogController::SetSelectedClusterWidget ( WidgetID  clusterId, WidgetID  widgetToSelect, const IPanelControlData *  panel = nil, bool16  invalidate = kTrue, bool16  notifyOfChange = kTrue  )

pure virtual

Helper method to set which widget in a cluster is selected

Implemented in CDialogController.

virtual void IDialogController::SetTextControlData ( const WidgetID &  widgetId, const PMString &  text, const IPanelControlData *  panel = nil, bool16  invalidate = kTrue, bool16  notifyOfChange = kTrue  )

pure virtual

Helper methods for easily setting the text of a widget that has text control data.

Implemented in CDialogController.

virtual void IDialogController::SetTextValue ( const WidgetID &  widgetId, const PMReal &  value, const IPanelControlData *  panel = nil, bool16  invalidate = kTrue, bool16  notifyOfChange = kTrue  )

pure virtual

Sets value of a widget with an ITextValue interface.

Implemented in CDialogController.

virtual void IDialogController::SetTextValueControlState ( const WidgetID &  widgetId, ITextValue::TextControlState  controlState, const IPanelControlData *  panel = nil, bool16  invalidate = kTrue, bool16  notifyOfChange = kTrue  )

pure virtual

Sets the control-state of a widget(editbox) that has an ITextValue interface.

Implemented in CDialogController.

virtual void IDialogController::SetTriStateControlData ( const WidgetID &  widgetId, ITriStateControlData::TriState  triState, const IPanelControlData *  panel = nil, bool16  invalidate = kTrue, bool16  notifyOfChange = kTrue  )

pure virtual

Helper methods for easily setting the state of a widget that has tristate control data.

Implemented in CDialogController.

virtual void IDialogController::SetTriStateControlData ( const WidgetID &  widgetId, bool16  isSelected, const IPanelControlData *  panel = nil, bool16  invalidate = kTrue, bool16  notifyOfChange = kTrue  )

pure virtual

Helper methods for easily setting the state of a widget that has tristate control data.

Implemented in CDialogController.

virtual void IDialogController::UserCancelled ( )

pure virtual

This function is called when the user clicks the "cancel" button. Override if the dialog needs to know when this happens.

Implemented in CDialogController, SnipRunDialogController, TxtExpDialogController, and CSelectableDialogController.

virtual WidgetID IDialogController::ValidateDialog ( )

pure virtual

This function is called when the user clicks the "ok" (or equivalent) button. Override ValidateFields to check that the data in each dialog control is valid and within limits. It's up to the subclass to display an alert. If one or more of the fields have invalid data, return the WidgetID of the dialog item to select. If all fields are valid, return kNoInvalidWidgets. When all fields are valid, the ApplyFields function will be called.

Returns

WidgetID of dialog item with invalid data, or kNoInvalidWidgets if data validated successfully
