IPreflightRuleUI Class Reference

#include <IPreflightRuleUI.h>

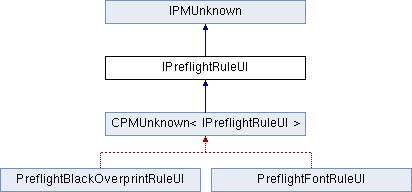

Inheritance diagram for IPreflightRuleUI:

Public Types
enum	{ kDefaultIID = IID_IPREFLIGHTRULEUI }
enum	UnitType {   kDefaultUnit = -1, kXCoordinate, kYCoordinate, kPoints,   kTextUnits, kTextSizeUnits, kLineUnits, kPercent,   kCoordinateGroupWithConstrain, kCoordinateGroupNoConstrain, kEnumerator, kStaticText }

Public Member Functions
virtual bool	HasUI () const =0
virtual IControlView *	CreateCustomUI (IDataBase *iUIDataBase) const =0
virtual bool	ApplyDataToCustomUI (IControlView *iCustomUI, IPreflightRuleData *iRuleDataToApply) const =0
virtual bool	GetDataFromCustomUI (IControlView *iCustomUI, IPreflightRuleData *iRuleData) const =0
virtual PMString	GetDataParemeterDescription (const IPreflightRuleData::Key &key) const =0
virtual UnitType	GetDataParemeterUnitType (const IPreflightRuleData::Key &key) const =0
virtual bool	GetDataParemeterRange (const IPreflightRuleData::Key &key, ScriptData &maxData, ScriptData &minData) const =0
virtual bool	ValidateParameterData (const IPreflightRuleData::Key &key, const ScriptData &newData, PMString &errorString) const =0
virtual bool	GetDataParemeterMapping (const IPreflightRuleData::Key &key, ScriptListData &enumData, ScriptListData &stringData) const =0
virtual IPreflightRuleData::Key	GetDataParamRoot () const =0
virtual void	GetDataParamParent (const IPreflightRuleData::Key &key, IPreflightRuleData::Key &keyParent) const =0
virtual bool	GetDataParamDirectChildren (const IPreflightRuleData::Key &key, std::vector< IPreflightRuleData::Key > &keyList) const =0
Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0
virtual void	AddRef () const =0
virtual void	Release () const =0

Detailed Description

This interface sits on a rule boss and provides rule-specific UI entry points. If the rule does not have any data parameters, then no implementation is needed.

If the rule wants to provide its own custom UI to be included in the InDesign preflight profile rule definition dialog, the following methods require implementation. These three methods allows the profile rule definition UI to embed the rule's custom UI, apply data to the UI, and retrieve data from the UI.

See Also

CreateCustomUI

ApplyDataToCustomUI

GetDataFromCustomUI

Note that if custom UI is used then there's no need to implement any of the methods for creating auto generated UI.

If the rule has simple data parameters and wants the InDesign preflight profile rule definition UI to construct automatically InDesign's UI widgets to represent the rule's data parameters, the remaining methods described in this class should have some implementation. To auto-generate the UI, we use these data and widget mapping: boolean data => checkbox PMReal, longint, shortint, string => edit boxes within this mapping, the data's UI UnitType specifies the edit box details. enumerator, longint, shortint, boolean can be mapped to a dropdown list. kCoordinateGroupWithConstrain & kCoordinateGroupNoConstrain will generate a special group control containing n editboxes either with a lock or without a lock contrain. The lock constrain will affect all edit units in the group alike.

Member Enumeration Documentation

enum IPreflightRuleUI::UnitType

This is the UI unit/value type for the data parameters. Use kDefaultUnit to indicate that the data value can be represented with default type.

Enumerator
kDefaultUnit	Value is InDesign default type.
kXCoordinate	Value is in XUnitOfMeasure
kYCoordinate	Value is in XUnitOfMeasure
kPoints	Value is in YUnitOfMeasure
kTextUnits	Value is in points
kTextSizeUnits	Value is in TextSizeUnitOfMeasure
kLineUnits	Value is in LineUnitOfMeasure
kPercent	The followings are special units to help auto generate more complicated UI.Value is in percentage
kCoordinateGroupWithConstrain	Group of coordinate values with contrain
kCoordinateGroupNoConstrain	Group of coordinate values without contrain
kEnumerator	Value is a custom enumerator-style type. Use GetDataParemeterMapping to provide/access detail about data.
kStaticText	No value; the parameter is just a static text item.

Member Function Documentation

virtual bool IPreflightRuleUI::ApplyDataToCustomUI ( IControlView *  iCustomUI, IPreflightRuleData *  iRuleDataToApply  ) const

pure virtual

Apply specified rule data to the cutom UI. The custom UI view passed is the same IControlView* initially created from CreateCustomUI ().

Parameters

iCustomUI	is the custom UI control view to apply the data to.
iRuleDataToApply	is the rule data to apply to the custome UI widget.

Returns

true if custom UI handled the data; otherwise false.

Implemented in PreflightFontRuleUI, and PreflightBlackOverprintRuleUI.

virtual IControlView* IPreflightRuleUI::CreateCustomUI ( IDataBase *  iUIDataBase ) const

pure virtual

Get the cutom UI for this rule

Returns

The custom IControlView.

Implemented in PreflightFontRuleUI, and PreflightBlackOverprintRuleUI.

virtual bool IPreflightRuleUI::GetDataFromCustomUI ( IControlView *  iCustomUI, IPreflightRuleData *  iRuleData  ) const

pure virtual

Retrieve rule data from the specified cutom UI. The custom UI view passed is the same IControlView* initially created from CreateCustomUI (). This is called when the main profile rule definition dialog is notified there're rule data changes. The custom UI notifies this change by broadcasting on the profile dialog's IDialogController's subject with the following arguments: theChange = kProfileCustomRuleDataChangeMessage protocol IID = IID_IPROFILEDLGUTILS changedBy = the custom UI controlview In turn, the main rule definition UI will ask for rule data from custom UI with this call.

Parameters

iCustomUI	is the custom UI control view to retrieve the data from. This should match the controlview which it originally broadcasted the data change.
iRuleData	is the rule data to which the custome UI widget should set the resulting rule data.

Returns

true if custom UI handled the data; otherwise false.

Implemented in PreflightFontRuleUI, and PreflightBlackOverprintRuleUI.

virtual bool IPreflightRuleUI::GetDataParamDirectChildren ( const IPreflightRuleData::Key &  key, std::vector< IPreflightRuleData::Key > &  keyList  ) const

pure virtual

Get the specified parameter key's direct child parameter keys.

Parameters

key	is the parameter key.
keyList	is the parameter's list of child parameter keys.

Returns

true if the specified key has children.

Implemented in PreflightFontRuleUI, and PreflightBlackOverprintRuleUI.

virtual void IPreflightRuleUI::GetDataParamParent ( const IPreflightRuleData::Key &  key, IPreflightRuleData::Key &  keyParent  ) const

pure virtual

Get the specified parameter key's parent. If the rule has a flat list of data parameters, then the parent is the root.

Parameters

key	is the parameter key.
keyParent	is the parameter's parent.

Implemented in PreflightFontRuleUI, and PreflightBlackOverprintRuleUI.

virtual IPreflightRuleData::Key IPreflightRuleUI::GetDataParamRoot ( ) const

pure virtual

Returns

the data parameter's root This is usually the rule itself.

Implemented in PreflightFontRuleUI, and PreflightBlackOverprintRuleUI.

virtual PMString IPreflightRuleUI::GetDataParemeterDescription ( const IPreflightRuleData::Key &  key ) const

pure virtual

Get the description of the specified data key for this rule.

Parameters

key	is the specified data key

Returns

the description string.

Implemented in PreflightFontRuleUI, and PreflightBlackOverprintRuleUI.

virtual bool IPreflightRuleUI::GetDataParemeterMapping ( const IPreflightRuleData::Key &  key, ScriptListData &  enumData, ScriptListData &  stringData  ) const

pure virtual

Get the data value mapping for this data parameter. This is used when specifying the data parameter as a dropdown list. This mapping allows mapping of integer values to a string for the dropdown list.

Parameters

key	is the specified data key
enumData	is the list of enum values for this data key
stringData	is the list of strings mapped to the corresponding enum values for this data key

Returns

kTrue is data key has mapping; otherwise returns kFalse.

Implemented in PreflightFontRuleUI, and PreflightBlackOverprintRuleUI.

virtual bool IPreflightRuleUI::GetDataParemeterRange ( const IPreflightRuleData::Key &  key, ScriptData &  maxData, ScriptData &  minData  ) const

pure virtual

Get the maximum and minimum range for this data paramete.

Parameters

key	is the specified data key
maxData	is the upper limit for this data key
minData	is the lower limit for this data key

Returns

kTrue is data key has max and min limits; otherwise returns kFalse.

Implemented in PreflightFontRuleUI, and PreflightBlackOverprintRuleUI.

virtual UnitType IPreflightRuleUI::GetDataParemeterUnitType ( const IPreflightRuleData::Key &  key ) const

pure virtual

Get the data parameter unit type. It can be one of type, UnitType defined above.

Parameters

key	is the specified data key

Returns

the enum for the unit type.

Implemented in PreflightFontRuleUI, and PreflightBlackOverprintRuleUI.

virtual bool IPreflightRuleUI::HasUI ( ) const

pure virtual

Returns

whether the rule has any UI, either custom or auto-generated. By "UI" we mean that there are widgets to be shown under the on/off checkbox. The on/off checkbox is always present. If you return true to this method you'll get a triangle next to your rule; if not, you won't.

Implemented in PreflightFontRuleUI, and PreflightBlackOverprintRuleUI.

virtual bool IPreflightRuleUI::ValidateParameterData ( const IPreflightRuleData::Key &  key, const ScriptData &  newData, PMString &  errorString  ) const

pure virtual

Validate new data value for the specified data key. This is needed if data requires more than just validating between max and min range specified by method GetDataParemeterRange.

See Also

GetDataparameterRange

Parameters

key	is the specified data key
newData	is the new data value for this key to validate.
errorString	is the error alert string to be shown if there's an error with this new value. If the errorString is a custom error string, it should be translated first. errorString is empty if there's no error or if alert is not needed.

Returns

true if the data value is good.

Implemented in PreflightFontRuleUI, and PreflightBlackOverprintRuleUI.
