#include <CPanelBasedXMLGenerator.h>

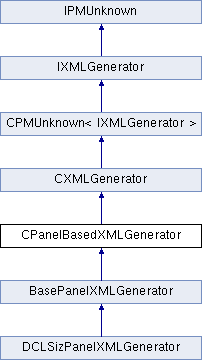

Inheritance diagram for CPanelBasedXMLGenerator:

Public Member Functions
	CPanelBasedXMLGenerator (IPMUnknown *boss)

virtual bool16	ShouldPanelBePersisted (IControlView *panel)

virtual void	GeneratePanelBeginTag (IXMLOutStream s, IControlView panel)

virtual void	GeneratePanelContents (IXMLOutStream s, IControlView panel)

virtual void	GeneratePanelEndTag (IXMLOutStream s, IControlView panel)

Public Member Functions inherited from CXMLGenerator
	CXMLGenerator (IPMUnknown *boss)

virtual void	GenerateBeginTag (IXMLOutStream *s)

virtual void	CollectAttributes (IXMLOutStream s, IXMLOutStream::AttributeList attrs)

virtual void	GenerateContent (IXMLOutStream *s, int32 beforeChildIndex=0)

virtual void	GenerateEndTag (IXMLOutStream *s)

Public Member Functions inherited from CPMUnknown< IXMLGenerator >
IPMUnknown *	QueryInterface (PMIID interfaceID) const

void	AddRef () const

void	Release () const

void	PreDirty (ImplementationID prop=kInvalidImpl, bool16 allowModification=kTrue)

void	PreDirtyNoMessage (ImplementationID prop=kInvalidImpl, bool16 allowModification=kTrue)

	CPMUnknown (const CPMUnknown &)=delete

CPMUnknown &	operator= (const CPMUnknown &)=delete

Protected Member Functions
virtual void	PushPanelAttributes (IXMLOutStream::AttributeList &attrs, IControlView *panel)

virtual void	GenerateControlSet (IXMLOutStream s, IKit panelKit)

void	PushBool (IXMLOutStream::AttributeList &attrs, const PMString &name, bool16 theBool)

void	PushInt (IXMLOutStream::AttributeList &attrs, const PMString &name, int32 theInt)

void	PushString (IXMLOutStream::AttributeList &attrs, const PMString &name, const PMString &value)

Additional Inherited Members
Public Types inherited from IXMLGenerator
enum	{ kDefaultIID = IID_IXMLGENERATOR }

Protected Attributes inherited from CPMUnknown< IXMLGenerator >
HelperInterface	fHelperInterface

Detailed Description

The base class used to generate the xml-based workspace representation of palette based panels. CPanelBasedXMLGenerator contains the default implementation used to write panels into a palette workspace.

Clients who need to override the default behavior provided here should subclass BasePanelXMLGenerator and include the implementation on their panel's boss as an IID_IXMLGENERATOR interface.

See Also: IXMLGenerator, BasePanelXMLGenerator

Member Function Documentation

virtual void CPanelBasedXMLGenerator::GenerateControlSet	(	IXMLOutStream *	s,
		IKit *	panelKit
	)

protectedvirtual

Writes the XML representation of a control set onto a stream

virtual void CPanelBasedXMLGenerator::GeneratePanelBeginTag	(	IXMLOutStream *	s,
		IControlView *	panel
	)

virtual

Writes the XML begin tag for a panel, including panel attributes, onto a stream

virtual void CPanelBasedXMLGenerator::GeneratePanelContents	(	IXMLOutStream *	s,
		IControlView *	panel
	)

virtual

Writes the XML representation of the panel content, onto a stream

virtual void CPanelBasedXMLGenerator::GeneratePanelEndTag	(	IXMLOutStream *	s,
		IControlView *	panel
	)

virtual

Writes the XML end tag for a panel onto a stream

void CPanelBasedXMLGenerator::PushBool	(	IXMLOutStream::AttributeList &	attrs,
		const PMString &	name,
		bool16	theBool
	)

protected

Utility method to add a boolean attribute to an attribute list

void CPanelBasedXMLGenerator::PushInt	(	IXMLOutStream::AttributeList &	attrs,
		const PMString &	name,
		int32	theInt
	)

protected

Utility method to add an integer attribute to an attribute list

virtual void CPanelBasedXMLGenerator::PushPanelAttributes	(	IXMLOutStream::AttributeList &	attrs,
		IControlView *	panel
	)

protectedvirtual

Collect the panel attributes (size, widgetID, detail level, etc. in an attribute list

Reimplemented in BasePanelXMLGenerator.

void CPanelBasedXMLGenerator::PushString	(	IXMLOutStream::AttributeList &	attrs,
		const PMString &	name,
		const PMString &	value
	)

protected

Utility method to add a string attribute to an attribute list

virtual bool16 CPanelBasedXMLGenerator::ShouldPanelBePersisted ( IControlView * panel )

virtual

Should this particular panel be persisted. Returns kTrue by default. Book panels (which are not persisted) provide their own XMLGenerator that returns kFalse.
