#include <CPathCreationTracker.h>

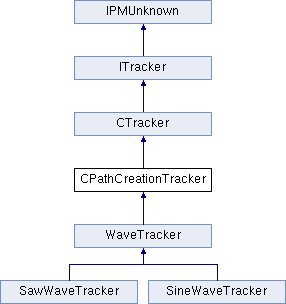

Inheritance diagram for CPathCreationTracker:

Public Types
enum	CursorOptions { kDefaultCursor = 0, kShowWidthHeight, kShowXPosition, kShowYPosition, kShowXYPosition, kShowLineLength, kShowScale }

Public Member Functions
	CPathCreationTracker (IPMUnknown *boss)

virtual	~CPathCreationTracker ()

virtual bool16	BeginTracking (IEvent *theEvent)

virtual void	ContinueTracking (const PBPMPoint &where, bool16 mouseDidMove)

virtual bool16	EndTracking (IEvent *theEvent)

virtual void	AbortTracking (IEvent *theEvent)

Public Member Functions inherited from CTracker
	CTracker (IPMUnknown *boss)

virtual void	SetupTracker (IControlView theControlView, ISnapTo theSnapper=NULL, IItemContext *context=NULL)

virtual IControlView *	QueryControlView () const

virtual bool16	IsEnabled ()

virtual bool16	IsTracking ()

virtual void	EnableTracking ()

virtual void	DisableTracking ()

virtual void	HandleContinueTracking (const GSysPoint &where)

virtual void	TimerMessage (int32 flags)

virtual bool16	WantTimer (ClassID trackerTimerBoss)

Public Member Functions inherited from ITracker
void	SetupTracker (IControlView *theControlView)

void	SetupSpecialTracker (IControlView theControlView, ISnapTo theSnapper, IItemContext *context)

Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0

virtual void	AddRef () const =0

virtual void	Release () const =0

Protected Member Functions
virtual void	CleanupTracking ()

virtual CursorOptions	GetCursorOption (void) const

virtual void	HandleMove (PMPoint &where)

virtual PMPoint	AutoScroll (const PMPoint &scrollBy, const PMPoint &scrolledPoint)

virtual void	MakePath (const PMPoint &startPt, const PMPoint &endPoint, IPathGeometry *pathGeometry)

virtual void	ShiftConstrainPoint (PMPoint &where)

virtual bool16	MovedMinimumDistance (const PBPMPoint &newLocation)

virtual bool16	IsGraphicFrame ()

virtual void	ProcessAdditionalCreationCommands (const UIDRef &newItem, const UIDRef &parent, const PMPointList &points, IPlaceBehavior::eAfterPlace afterPlace)

virtual UIDRef	CreatePageItem (const UIDRef &parent, const PMPointList &points, const IEvent &theEvent, IPlaceBehavior::eAfterPlace *afterPlace=nil)

virtual void	SetBoundingBox (const UIDRef &newItem, const UIDRef &parent, const PMPointList &points)

virtual void	AddToHierarchy (const UIDRef &parent, const UIDRef &newItem)

virtual void	ProcessAdditionalSelectionCommands (const UIDRef &newItem)

virtual void	ProcessAddToSelectionCommand (IControlView *view, const UIDRef &newItem)

virtual void	CompletelyCreateItem (IEvent *theEvent)

virtual bool16	SufficientSize (const PMPointList &points)

virtual void	ConvertToPasteboardConstrained (PMPoint thePoint, PMPoint &convertedPoint)

virtual void	ConvertToPasteboardConstrained (GSysPoint thePoint, PMPoint &convertedPoint)

virtual void	SetUpParentTransforms (PMPoint *endPoint)

virtual UIDRef	GetParent ()

virtual void	CheckSmartDimensions (PBPMPoint &endPoint, PBPMPoint &startPoint, SnapType &snapType, const IControlView *view)

virtual Geometry::BoundsKind	GetPathCreationBoundsKind ()

Protected Member Functions inherited from CTracker
virtual void	Initialize (IEvent *theEvent)

virtual bool16	DoBeginTracking (IEvent *theEvent)

virtual bool16	DoEndTracking (IEvent *theEvent)

virtual void	NotifyBeginTracking (const PMPoint &startPt, IDynamicTrackerData::TrackingEffect effect=IDynamicTrackerData::kUnknown)

virtual void	NotifyContinueTracking (const PMPoint &startPt, const PMPoint &endPoint, IDynamicTrackerData::TrackingEffect effect=IDynamicTrackerData::kUnknown)

virtual void	NotifyEndTracking (const PMPoint &startPt, const PMPoint &endPoint, IDynamicTrackerData::TrackingEffect effect=IDynamicTrackerData::kUnknown)

virtual IDynamicTrackerData::TrackingEffect	GetTrackingEffect (IDynamicTrackerData::TrackingState state)

virtual void	PushEventHandler ()

virtual void	PopEventHandler ()

virtual bool16	WantsToAutoScroll (const PMPoint &currentPoint)

virtual void	GlobalToPasteboard (const GSysPoint &thePoint, PBPMPoint &convertedPoint)

virtual PMPoint	PasteboardToGlobal (const PBPMPoint &pbPoint)

virtual IPanorama *	QueryPanorama (IControlView *pView) const

virtual void	DisableUpdates ()

virtual void	EnableUpdates ()

void	DeselectAllItems ()

virtual void	ComputeAdjustedPoint (PMPoint &adjustedPoint)

void	InitializeModalCursor ()

void	ChangeModalCursor (const CursorSpec &spec)

void	UpdateModalCursor ()

void	ReleaseModalCursor ()

virtual uint32	GetMouseMoveDelay ()

virtual uint32	GetMouseSteadyDelay ()

virtual bool16	AdjustPoint (PBPMPoint &point)

void	StartTimer (ClassID trackerTimerBoss, uint32 milliSeconds, uint32 mouseMoveDelay=kDefaultMouseMoveDelay, uint32 mouseSteadyDelay=kDefaultMouseSteadyDelay)

void	StopTimer (ClassID trackerTimerBoss)

bool16	GetTimerFlags ()

void	SetTimerFlags (int32 flags)

uint32	GetElapsedTime ()

virtual IDataBase *	GetTrackingDataBase () const

Protected Attributes
ClassID	fClassID

PMPoint	fStartPnt

PMPoint	fStartGlobalPt

PMRect	fPasteBoardBoundaries

PMRect	fPasteBoardBoundsSpreadCoordinates

bool16	fShiftKeyPressed

bool16	fShownFirstTime

bool16	fOptionAltKeyPressed

bool16	fCmdCtrlKeyPressed

bool16	fCreatingFromCenter

PMMatrix	fSpreadToPasteboardMatrix

PMMatrix	fPasteboardToSpreadMatrix

PMMatrix	fTransformMatrix

PMMatrix	fBackTransformMatrix

IAbortableCmdSeq *	fTrackerSequence

PMRect	fGraphicBBox

bool32	fCreateMultiple

int32	fRows

int32	fColumns

Protected Attributes inherited from CTracker
IControlView *	fControlView

IDataBase *	fDataBase

IItemContext *	fItemContext

ISnapTo *	fSnapTo

SnapType	fSnapType

bool16	fIsTracking

bool16	fWantsToAutoScroll

PMPoint	fPreviousPoint

PMPoint	fFirstPoint

GSysPoint	fFirstGlobalWhere

uint32	fFirstTicks

bool16	fEnabled

IRulerData *	fHorzRuler

IRulerData *	fVertRuler

AcquireModalCursor *	fModalCursor

AutoBusyCursor *	fAutoBusyCursor

uint32	fOldSchedulerMask

int32	fTimerFlags

K2Vector< ITrackerTimer * >	fTimerPtrs

Static Protected Attributes
static PMReal	fHSpacing

static PMReal	fVSpacing

Additional Inherited Members
Static Protected Member Functions inherited from CTracker
static void	DeactivatePageItem ()

Detailed Description

Tracker for creating new page items. This tracker has the ability to create a grid of items when the user presses the arrow keys to increase the number of rows or columns in the grid. To enable this functionality, the tracker's boss must contain the following 2 interfaces: IID_ITRACKERKEYDATA, kIntDataImpl, // Used for storing key presses in event handler so tracker can access for altering polygon sides and star inset or grid attributes IID_IDYNAMICTRACKERDATA, kDynamicTrackerDataImpl, // Used for storing information about the grid and other dynamic information IID_ISPRITE, kNoHandleSpriteImpl, You could, of course, implement your own versions of any of these interfaces. However, these particular ones are already 'grid' savy.

Constructor & Destructor Documentation

CPathCreationTracker::CPathCreationTracker ( IPMUnknown * boss )

Constructor

Parameters

boss	refers to object on which this interface is aggregated

virtual CPathCreationTracker::~CPathCreationTracker ( )

virtual

Destructor.

Member Function Documentation

virtual void CPathCreationTracker::AbortTracking ( IEvent * theEvent )

virtual

Immediately terminate tracking.

Parameters

theEvent event associated

Reimplemented from CTracker.

virtual void CPathCreationTracker::AddToHierarchy	(	const UIDRef &	parent,
		const UIDRef &	newItem
	)

protectedvirtual

Clients should override this method if they want a different behavior for adding to the hierarchy

Parameters

parent
newItem

virtual PMPoint CPathCreationTracker::AutoScroll	(	const PMPoint &	scrollBy,
		const PMPoint &	scrolledPoint
	)

protectedvirtual

Parameters

scrollBy
scrolledPoint

Reimplemented from CTracker.

virtual bool16 CPathCreationTracker::BeginTracking ( IEvent * theEvent )

virtual

Start tracking the mouse. Usually called as the result of a mouse down event.

Parameters

theEvent event associated

Reimplemented from CTracker.

virtual void CPathCreationTracker::CheckSmartDimensions	(	PBPMPoint &	endPoint,
		PBPMPoint &	startPoint,
		SnapType &	snapType,
		const IControlView *	view
	)

protectedvirtual

This method is called from ConvertToPasteboardConstrained() to do SmartDimensions snapping.

virtual void CPathCreationTracker::CleanupTracking ( )

protectedvirtual

Destroy sprite and do general cleanup for EndTracking and AbortTracking cases.

virtual void CPathCreationTracker::CompletelyCreateItem ( IEvent * theEvent )

protectedvirtual

Do the whole thing - typically not overridden

Parameters

theEvent

virtual void CPathCreationTracker::ContinueTracking	(	const PBPMPoint &	where,
		bool16	mouseDidMove
	)

virtual

Called after BeginTracking and before EndTracking. ContinueTracking is called repeatedly even when the mouse is not moving (to support things like auto scrolling).

Parameters

where	location of mouse
mouseDidMove	specifies whether mouse-move event is behind this call

Reimplemented from CTracker.

virtual UIDRef CPathCreationTracker::CreatePageItem	(	const UIDRef &	parent,
		const PMPointList &	points,
		const IEvent &	theEvent,
		IPlaceBehavior::eAfterPlace *	afterPlace = `nil`
	)

protectedvirtual

Clients should override this method if the item is not a kSplineItemBoss

Parameters

parent

virtual bool16 CPathCreationTracker::EndTracking ( IEvent * theEvent )

virtual

Called when tracking is completed. Clean up any loose ends and post any dynamic commands.

Parameters

theEvent event associated

Reimplemented from CTracker.

virtual CursorOptions CPathCreationTracker::GetCursorOption ( void ) const

protectedvirtual

Override this method to make the cursor show dynamic metric info.

virtual void CPathCreationTracker::HandleMove ( PMPoint & where )

protectedvirtual

Parameters

where

virtual bool16 CPathCreationTracker::IsGraphicFrame ( )

protectedvirtual

Clients should override this and return kTrue if they want to be graphic frames

virtual void CPathCreationTracker::MakePath	(	const PMPoint &	startPt,
		const PMPoint &	endPoint,
		IPathGeometry *	pathGeometry
	)

protectedvirtual

Parameters

startPt
endPoint
pathGeometry

Reimplemented in SawWaveTracker, and SineWaveTracker.

virtual bool16 CPathCreationTracker::MovedMinimumDistance ( const PBPMPoint & newLocation )

protectedvirtual

Returns kTrue if the distance between the first screen point and the most recent screen point is greater than the min drag distance. The pb point here gets converted to global coordinates inside the method.

Parameters

newLocation

Returns: kTrue if the distance between the first screen point and the most recent screen point is greater than the min drag distance, kFalse otherwise

virtual void CPathCreationTracker::ProcessAdditionalCreationCommands	(	const UIDRef &	newItem,
		const UIDRef &	parent,
		const PMPointList &	points,
		IPlaceBehavior::eAfterPlace	afterPlace
	)

protectedvirtual

Clients should override this method if the client needs to perform special additional commands.

virtual void CPathCreationTracker::ProcessAdditionalSelectionCommands ( const UIDRef & newItem )

protectedvirtual

Clients should override this method if client needs special selection (i.e. no selection). By default, path item created will be selected. Note that this method will not be called if in grid mode (i.e. we are creating multiple items in this one tracking session.)

Parameters

newItem

virtual void CPathCreationTracker::ProcessAddToSelectionCommand	(	IControlView *	view,
		const UIDRef &	newItem
	)

protectedvirtual

Clients should override this method if client needs special selection (i.e. no selection). when in 'grid' mode (i.e. we are creating multiple items in this one tracking session.) By default, this method will perform a layout selection on all newly created page items.

Parameters

newItem

virtual void CPathCreationTracker::SetBoundingBox	(	const UIDRef &	newItem,
		const UIDRef &	parent,
		const PMPointList &	points
	)

protectedvirtual

Clients should override this method if the client needs to make the item a special size. By default a SetBoundingBoxCmd is issued to set the stroke bounding box to be 'points'.

Parameters

newItem
parent
points

Reimplemented in WaveTracker.

virtual void CPathCreationTracker::ShiftConstrainPoint ( PMPoint & where )

protectedvirtual

Parameters

where

Reimplemented in WaveTracker.

virtual bool16 CPathCreationTracker::SufficientSize ( const PMPointList & points )

protectedvirtual

Gives the chance to restrict creation. Must be true to create. Default returns true if both points are not equal.

Parameters

points

Returns: kTrue
