SineWaveTracker Class Reference

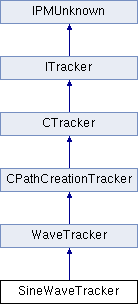

Inheritance diagram for SineWaveTracker:

Public Member Functions
	SineWaveTracker (IPMUnknown *boss)
	~SineWaveTracker ()
virtual void	MakePath (const PMPoint &startPt, const PMPoint &endPoint, IPathGeometry *pathGeometry)
Public Member Functions inherited from WaveTracker
	WaveTracker (IPMUnknown *boss)
	~WaveTracker ()
virtual void	ShiftConstrainPoint (PMPoint &convertedPoint)
virtual void	SetBoundingBox (const UIDRef &newItem, const UIDRef &parent, const PMPointList &points)
Public Member Functions inherited from CPathCreationTracker
	CPathCreationTracker (IPMUnknown *boss)
virtual	~CPathCreationTracker ()
virtual bool16	BeginTracking (IEvent *theEvent)
virtual void	ContinueTracking (const PBPMPoint &where, bool16 mouseDidMove)
virtual bool16	EndTracking (IEvent *theEvent)
virtual void	AbortTracking (IEvent *theEvent)
Public Member Functions inherited from CTracker
	CTracker (IPMUnknown *boss)
virtual void	SetupTracker (IControlView *theControlView, ISnapTo *theSnapper=NULL, IItemContext *context=NULL)
virtual IControlView *	QueryControlView () const
virtual bool16	IsEnabled ()
virtual bool16	IsTracking ()
virtual void	EnableTracking ()
virtual void	DisableTracking ()
virtual void	HandleContinueTracking (const GSysPoint &where)
virtual void	TimerMessage (int32 flags)
virtual bool16	WantTimer (ClassID trackerTimerBoss)
Public Member Functions inherited from ITracker
void	SetupTracker (IControlView *theControlView)
void	SetupSpecialTracker (IControlView *theControlView, ISnapTo *theSnapper, IItemContext *context)
Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0
virtual void	AddRef () const =0
virtual void	Release () const =0

Additional Inherited Members
Public Types inherited from CPathCreationTracker
enum	CursorOptions {   kDefaultCursor = 0, kShowWidthHeight, kShowXPosition, kShowYPosition,   kShowXYPosition, kShowLineLength, kShowScale }
Protected Member Functions inherited from WaveTracker
void	Transform (const PMPoint &endPoint, const PMReal pathLength, IPathGeometry *pathGeometry)
Static Protected Member Functions inherited from CTracker
static void	DeactivatePageItem ()
Protected Attributes inherited from CPathCreationTracker
ClassID	fClassID
PMPoint	fStartPnt
PMPoint	fStartGlobalPt
PMRect	fPasteBoardBoundaries
PMRect	fPasteBoardBoundsSpreadCoordinates
bool16	fShiftKeyPressed
bool16	fShownFirstTime
bool16	fOptionAltKeyPressed
bool16	fCmdCtrlKeyPressed
bool16	fCreatingFromCenter
PMMatrix	fSpreadToPasteboardMatrix
PMMatrix	fPasteboardToSpreadMatrix
PMMatrix	fTransformMatrix
PMMatrix	fBackTransformMatrix
IAbortableCmdSeq *	fTrackerSequence
PMRect	fGraphicBBox
bool32	fCreateMultiple
int32	fRows
int32	fColumns
Static Protected Attributes inherited from CPathCreationTracker
static PMReal	fHSpacing
static PMReal	fVSpacing

Detailed Description

Creates spline page item in the shape of a sine wave along the line dragged by the user's mouse.

Constructor & Destructor Documentation

SineWaveTracker::SineWaveTracker

(

IPMUnknown *

boss

)

Constructor.

SineWaveTracker::~SineWaveTracker

(

)

Destructor.

Member Function Documentation

void SineWaveTracker::MakePath ( const PMPoint &  startPt, const PMPoint &  endPoint, IPathGeometry *  pathGeometry  )

virtual

Describes the sine wave path.

Reimplemented from CPathCreationTracker.
