ITreeViewWidgetMgr Class Reference

#include <ITreeViewWidgetMgr.h>

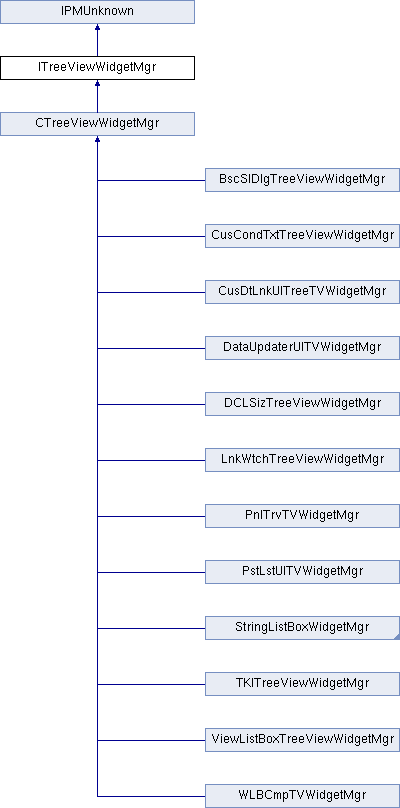

Inheritance diagram for ITreeViewWidgetMgr:

Public Types
enum	{ kDefaultIID = IID_ITREEVIEWWIDGETMGR }

Public Member Functions
Widget Factory and reuse
virtual IControlView *	CreateWidgetForNode (const NodeID &node) const =0
virtual WidgetID	GetWidgetTypeForNode (const NodeID &node) const =0
virtual bool16	ApplyNodeIDToWidget (const NodeID &node, IControlView *widget, int32 message=0) const =0
virtual void	PreDeleteWidget (IControlView *widget)=0
Widget placement
virtual PMReal	GetNodeWidgetHeight (const NodeID &node) const =0
virtual PMReal	GetNodeWidgetWidth (const NodeID &node) const =0
virtual PMReal	GetIndentForNode (const NodeID &node) const =0
Widget Style - The tree view may have different looks, i.e. Large vs. Small palette rows
virtual void	SetStyle (int32 styleIdentifier)=0
virtual int32	GetStyle () const =0
Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0
virtual void	AddRef () const =0
virtual void	Release () const =0

Detailed Description

Interface responsible for creating the tree-view control widgets and applying node data to the widget.

Should be implemented by client code wishing to use a tree-view widget.

Member Function Documentation

virtual bool16 ITreeViewWidgetMgr::ApplyNodeIDToWidget ( const NodeID &  node, IControlView *  widget, int32  message = 0  ) const

pure virtual

Change data in your nodeWidget(widget) to reflect the node passed in.

Parameters

node	specifies node to be rendered
widget	this is where the data from the node should be rendered
message	if you call an ITreeViewMgr method with a message, that message will be passes back to you in this parameter. For instance, if it is expensive to update the text, but not the icon. You could pass yourself a kMyIconChanged message in ITreeViewMgr::NodeChanged() and then only update the icon in ApplyDataToWidget() if message=kMyIconChanged

Returns

kTrue if you were successful in applying data, kFalse if unsuccessful. If kFalse is returned, the TreeViewMgr will ask you to create a new widget for this node with CreateWidgetForNode() and then ask to apply data again

Implemented in CusDtLnkUITreeTVWidgetMgr, PnlTrvTVWidgetMgr, DataUpdaterUITVWidgetMgr, CTreeViewWidgetMgr, CusCondTxtTreeViewWidgetMgr, and StringListBoxWidgetMgr.

virtual IControlView* ITreeViewWidgetMgr::CreateWidgetForNode ( const NodeID &  node ) const

pure virtual

Create the widget, but don't change the widget-data to match the node. That should be handled in ApplyNodeIDToWidget

Parameters

node

Returns

reference to IControlView interface on newly created widget boss object

Implemented in CTreeViewWidgetMgr, CusDtLnkUITreeTVWidgetMgr, PnlTrvTVWidgetMgr, DataUpdaterUITVWidgetMgr, CusCondTxtTreeViewWidgetMgr, StringListBoxWidgetMgr, TKITreeViewWidgetMgr, and ViewListBoxTreeViewWidgetMgr.

virtual PMReal ITreeViewWidgetMgr::GetIndentForNode ( const NodeID &  node ) const

pure virtual

Parameters

node

Returns

indent in pixels for widget rendering given node

Implemented in CusDtLnkUITreeTVWidgetMgr, PnlTrvTVWidgetMgr, DataUpdaterUITVWidgetMgr, CTreeViewWidgetMgr, and PstLstUITVWidgetMgr.

virtual PMReal ITreeViewWidgetMgr::GetNodeWidgetHeight ( const NodeID &  node ) const

pure virtual

Parameters

node
return	desired height in pixels of widget rendering given node

Implemented in CTreeViewWidgetMgr, StringListBoxWidgetMgr, and ViewListBoxTreeViewWidgetMgr.

virtual PMReal ITreeViewWidgetMgr::GetNodeWidgetWidth ( const NodeID &  node ) const

pure virtual

Parameters

node

Returns

desired width in pixels of widget rendering given node

Implemented in CTreeViewWidgetMgr, StringListBoxWidgetMgr, and ViewListBoxTreeViewWidgetMgr.

virtual int32 ITreeViewWidgetMgr::GetStyle ( ) const

pure virtual

Returns

arbitrary style identifer used by the interface. See SetStyle

Implemented in CTreeViewWidgetMgr.

virtual WidgetID ITreeViewWidgetMgr::GetWidgetTypeForNode ( const NodeID &  node ) const

pure virtual

Determine a widget id that corresponds to the type of widget that should be used to render data from the given node

Parameters

node	specifies the node of interest

Returns

a widget ID for a widget type that can be used to render this node's data

Implemented in CTreeViewWidgetMgr, CusDtLnkUITreeTVWidgetMgr, PnlTrvTVWidgetMgr, and DataUpdaterUITVWidgetMgr.

virtual void ITreeViewWidgetMgr::PreDeleteWidget ( IControlView *  widget )

pure virtual

Only TreeViews that need to do something prior to the tree deleting a widget will need to override this method. This method is called from the tree view manaager before it deletes a widget. For example, this provides the widget manager client to disconnect any child widgets it wants to continue to manage.

Parameters

widget

this is the widget that is being deleted

Implemented in CTreeViewWidgetMgr, and ViewListBoxTreeViewWidgetMgr.

virtual void ITreeViewWidgetMgr::SetStyle ( int32  styleIdentifier )

pure virtual

Set a style for the TreeView. These are essentially client defined and can be used however you like. This method is not called by the Tree Architecture, but can be called by a given tree implementaion to change the look of the tree.

Parameters

styleIdentifier

this is a client defined number that arbitrarily identifies a style. For you convenience, 2 standard styles identifiers have been provided, kSmallPaletteRowsTreeStyle and kLargePaletteRowsTreeStyle

Implemented in CTreeViewWidgetMgr.
