StringListBoxWidgetMgr Class Reference

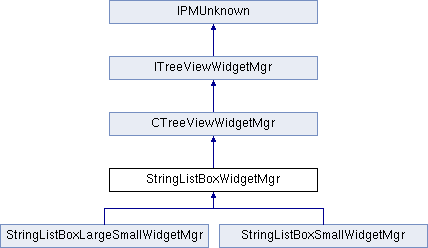

Inheritance diagram for StringListBoxWidgetMgr:

Public Member Functions
	StringListBoxWidgetMgr (IPMUnknown *boss)
Public Member Functions inherited from CTreeViewWidgetMgr
	CTreeViewWidgetMgr (IPMUnknown *boss)
	CTreeViewWidgetMgr (IPMUnknown *boss, int32 optionFlags)
virtual	~CTreeViewWidgetMgr ()
virtual PMReal	GetIndentForNode (const NodeID &node) const
virtual void	SetStyle (int32 styleIdentifier)
virtual int32	GetStyle () const
virtual WidgetID	GetWidgetTypeForNode (const NodeID &node) const
virtual void	PreDeleteWidget (IControlView *widget)
Widget Factory and reuse
Widget placement
Widget Style - The tree view may have different looks, i.e. Large vs. Small palette rows
Public Member Functions inherited from IPMUnknown
virtual IPMUnknown *	QueryInterface (PMIID interfaceID) const =0
virtual void	AddRef () const =0
virtual void	Release () const =0

Protected Member Functions
virtual bool16	ApplyNodeIDToWidget (const NodeID &node, IControlView *widget, int32 message=0) const
virtual bool16	ApplyDataToWidget (const NodeID &node, IPanelControlData *widgetList, int32 message=0) const
virtual PMReal	GetNodeWidgetHeight (const NodeID &node) const
virtual void	RegisterStyles ()
virtual PMString	GetStringFromControlData (int32 nodeIndex) const
virtual IControlView *	CreateWidgetForNode (const NodeID &node) const
virtual PMReal	GetNodeWidgetWidth (const NodeID &node) const
Protected Member Functions inherited from CTreeViewWidgetMgr
virtual void	ApplyIndentToWidget (const NodeID &node, IPanelControlData *widgetList, int32 message=0) const
virtual PMReal	GetBaseIndentOffset (IControlView *styleWidget) const
virtual PMReal	GetTreeViewWidth () const
virtual void	ApplyHighlightToWidget (const NodeID &node, IControlView *widget, int32 message=0) const
virtual PMReal	GetIndent (const NodeID &node) const
virtual void	RegisterStyleWidget (int32 style, RsrcID widgetRsrcID, PluginID pluginID)
virtual void	HideExpanderIfNotExpandable (const NodeID &node, IPanelControlData *widgetList, int32 message=0) const
virtual void	SetNodeName (IPanelControlData *widgetList, const PMString &name, WidgetID nameWidget=kTreeNodeNameWidgetID) const
virtual void	SetNodeIcon (IPanelControlData *widgetList, RsrcID iconRsrc, PluginID pluginID=0, WidgetID iconWidget=kTreeNodeIconWidgetID) const
virtual bool16	IsOptionSet (Options option) const
virtual void	SetSelectableDlgDrawNodeSeparatorOff (IControlView *widget) const

Additional Inherited Members
Public Types inherited from ITreeViewWidgetMgr
enum	{ kDefaultIID = IID_ITREEVIEWWIDGETMGR }
Protected Types inherited from CTreeViewWidgetMgr
enum	Options { kList = 0, kHierarchical = 1 }

Member Function Documentation

virtual bool16 StringListBoxWidgetMgr::ApplyDataToWidget ( const NodeID &  node, IPanelControlData *  widgetList, int32  message = 0  ) const

protectedvirtual

Most TreeViews will override this method. This method is called from ApplyNodeIDToWidget() to apply the Node specific data to the widgets within the main node widget. Typically, the name of the node and icon for the node are applied to a Text widget and an icon widget. When overriding this method, the base class version is not typically called.

Parameters

node	the node whose data you want applied to the given widget
widgetList	This is the IPanelControlData of the Tree node widget. The Tree node widget typically contains subwidgets which are changed based on the specific data for the given node.
message	if you call an ITreeViewMgr method with a message, that message will be passed back to you in this parameter. For instance, if it is expensive to update the text, but not the icon. You could pass yourself a kMyIconChanged message in ITreeViewMgr::NodeChanged() and then only update the icon in ApplyDataToWidget() if message=kMyIconChanged

Returns

bool16 kTrue if you were successful in applying data, kFalse if unsuccessful. If kFalse is returned, the TreeViewMgr will ask you to create a new widget for this node with CreateWidgetForNode() and then ask to apply data again

Reimplemented from CTreeViewWidgetMgr.

virtual bool16 StringListBoxWidgetMgr::ApplyNodeIDToWidget ( const NodeID &  node, IControlView *  widget, int32  message = 0  ) const

protectedvirtual

Change data in your nodeWidget(widget) to reflect the node passed in.

Parameters

node	specifies node to be rendered
widget	this is where the data from the node should be rendered
message	if you call an ITreeViewMgr method with a message, that message will be passes back to you in this parameter. For instance, if it is expensive to update the text, but not the icon. You could pass yourself a kMyIconChanged message in ITreeViewMgr::NodeChanged() and then only update the icon in ApplyDataToWidget() if message=kMyIconChanged

Returns

kTrue if you were successful in applying data, kFalse if unsuccessful. If kFalse is returned, the TreeViewMgr will ask you to create a new widget for this node with CreateWidgetForNode() and then ask to apply data again

Reimplemented from CTreeViewWidgetMgr.

virtual IControlView* StringListBoxWidgetMgr::CreateWidgetForNode ( const NodeID &  node ) const

protectedvirtual

Create the widget, but don't change the widget-data to match the node; that should be done in ApplyNodeIDToWidget

Parameters

node

Returns

reference to IControlView interface on newly created widget boss object

Reimplemented from CTreeViewWidgetMgr.

virtual PMReal StringListBoxWidgetMgr::GetNodeWidgetHeight ( const NodeID &  node ) const

protectedvirtual

Returns desired height in pixels of widget rendering given node.

Parameters

node
return	desired height in pixels of widget rendering given node

Reimplemented from CTreeViewWidgetMgr.

virtual PMReal StringListBoxWidgetMgr::GetNodeWidgetWidth ( const NodeID &  node ) const

protectedvirtual

Returns desired width in pixels of widget rendering given node.

Parameters

node

Returns

desired width in pixels of widget rendering given node

Reimplemented from CTreeViewWidgetMgr.

virtual void StringListBoxWidgetMgr::RegisterStyles ( )

protectedvirtual

This method is where you specify the widget that should be used for each of the Tree Styles you support. If you only support 1 Tree Style, then you need only Register one style in from this method. This method is automatically called when it is time to register your styles. Inside you should call RegisterStyleWidget() to asssociate a widget with a style.

If your tree can contain different widgets depending on the NodeID, then you should use override CreateWidgetForNode instead of this RegisterStyles() method

This default implementation registers the standard Tree widgets for large and small palette rows. If you aren't using the standard widgets, then override this and DON'T CALL the base class method.

Reimplemented from CTreeViewWidgetMgr.

Reimplemented in StringListBoxLargeSmallWidgetMgr, and StringListBoxSmallWidgetMgr.
